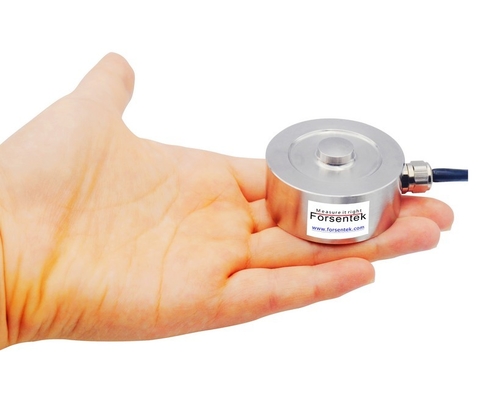

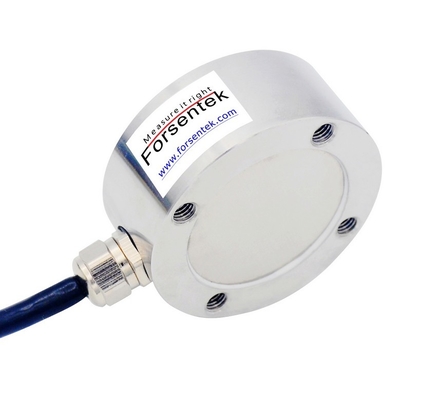

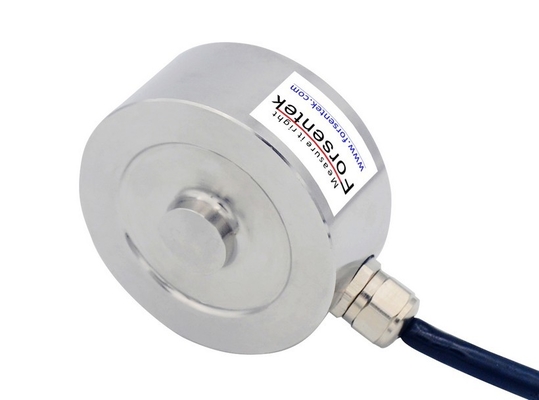

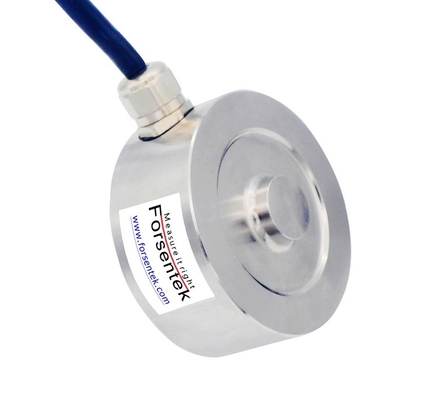

Compression Force Sensor 1KN 2KN 5KN 10kN 20kN 50kN Button Load Cell

Good quality 3 axis force sensor for sales
Good quality 3 axis force sensor for sales
I'm Online Chat Now

Compression Force Sensor 1KN 2KN 5KN 10kN 20kN 50kN Button Load Cell

China Compression Force Sensor 1KN 2KN 5KN 10kN 20kN 50kN Button Load Cell supplier
Compression Force Sensor 1KN 2KN 5KN 10kN 20kN 50kN Button Load Cell supplier Compression Force Sensor 1KN 2KN 5KN 10kN 20kN 50kN Button Load Cell supplier

Large Image :  Compression Force Sensor 1KN 2KN 5KN 10kN 20kN 50kN Button Load Cell

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FC50

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1968pcs/month
Contact Now
Detailed Product Description
Usage: Force Measurement Structure: Button Load Cell
Force Range: 1kN 2kN 5kN 10kN 20kN 50kN 100kN Type: Compression Force Transducer
Output: Analog Sensor
High Light:

compression force sensor

,

compression load cell

,

compression force transducer

Compression Force Sensor 1KN 2KN 5KN 10kN 20kN 50kN Button Load Cell

Features

  • Compact structure,stainless steel construction.
  • Strain gauge technology,analog output.
  • 0-5V or 4-20mA output available through external amplifier
  • Compression force measurement.

Application

  • Testing machine
  • Auto equipment
  • Force overload detecting
  • Assembly line

Compression force sensor FC50

compression force transducer

Specifications

Capacity

100kg / 1kN / 220lb

200kg / 2kN / 450lb

500kg / 5kN / 1.1klb

1 ton / 10kN / 2.2klb

2 ton / 20kN / 4.5klb

5 ton / 50kN / 11.2klb

10 ton / 10kN / 22klb

Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 385±30 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Stainless steel
Cable Ø4*4000mm 4-core shielded cable
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



Dimensions

compressive load sensor

Click here to download datasheet
