| Usage: | Torque Measurement Sensor | Theory: | Miniature Torque Transducer |
|---|---|---|---|
| Output: | Analog Sensor | Torque Direction: | Clockwise&Counterclockwise |
| Capacity: | 0.1NM 0.2NM 0.3NM 0.5NM 1NM 2NM 3NM 5NM | Structure: | Shaft-to-shaft |

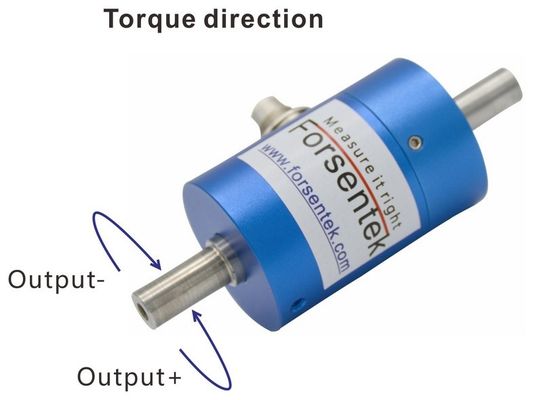

Inline torque sensor 5NM 2NM 1NM 0.5NM 0.2NM 0.1NM micro torque transducer
Features
Dimensions
Specifications
| Capacity | 0.1NM 0.2NM 0.3NM 0.5NM 1NM 2NM 3NM 5NM |
| Rated output | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP60 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Inline torque transducer FT05
A torque sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of FT05 is normally within -20mV...+20mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.
