| Type: | 3-axis Sensor | Channel: | Fx/Fy/Fz |
|---|---|---|---|
| Capacity: | 50N 100N 200N 500N | Mounting: | Flange To Flange |

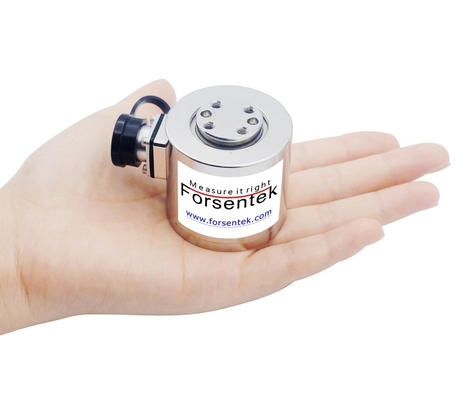

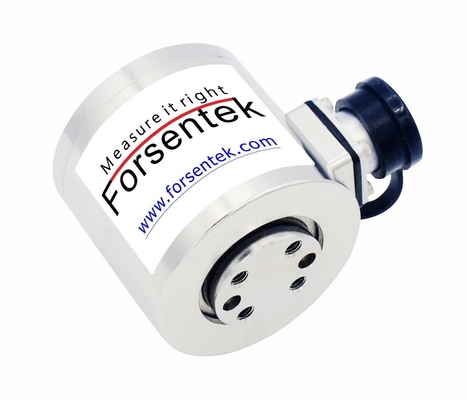

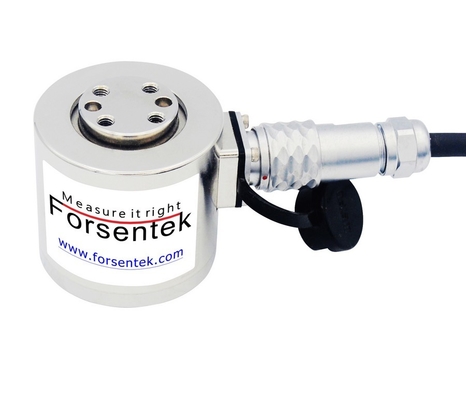

3 axis load cell 50N 3-axis force sensor 500N Triaxial load cell 100N 200N
The MAC Multi-Axis Load Cell is engineered to measure forces simultaneously across three mutually perpendicular axes (Fx, Fy, Fz) using independent Wheatstone full-bridge circuits for each axis. These circuits generate millivolt-per-volt (mV/V) analog outputs proportional to the applied forces, ensuring precise and isolated measurements for all three directions. Available in four calibrated ranges—50N, 100N, 200N, and 500N—the sensor supports bidirectional force detection in both tension and compression modes, enabling comprehensive load analysis in dynamic environments. Its triaxial design eliminates the need for multiple single-axis sensors, simplifying system integration while maintaining high accuracy.
Constructed from robust stainless steel, the MAC 3-axis load cell combines durability with a compact, flange-to-flange mounting design. This configuration ensures secure installation and efficient force transmission between connected components, even in harsh industrial settings. The sensor’s space-saving profile allows seamless integration into confined spaces, making it ideal for applications requiring reliable performance.Designed for versatility, the MAC series excels in applications such as robotic force control, industrial test bench validation, grinding force regulation, and actuator force measurement. It provides real-time, three-dimensional force data to enhance precision in automated manufacturing, quality assurance, and R&D processes. By capturing complex force vectors in a single device, the MAC load cell streamlines multi-directional load analysis, offering a cost-effective and efficient solution for advanced engineering challenges where accurate force monitoring is critical.
Specifications
| Rated Capacity |
X/Y/Z-50N 100N 200N 500N |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.03% R.O./oC |
| Input resistance | 170±30Ω |
| Output resistance |
Fx/Fy: 380±30Ω Fz: 730±30Ω |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP60 |
| Material of element | Stainless steel |
| Cable | Ø6*4000mm 8-core shielded cable |
| Wiring code |
Excitation: Red--Exc+ Blue--Exc- Fx: Green--Sig+ Yellow--Sig- Fy: Purple--Sig+ Black--Sig- Fz: Red blue--Sig+ Gray pink--Sig- |
50N 3 axis force sensor 100N Multi-axis load cell 200N Triaxial load cell 500N
