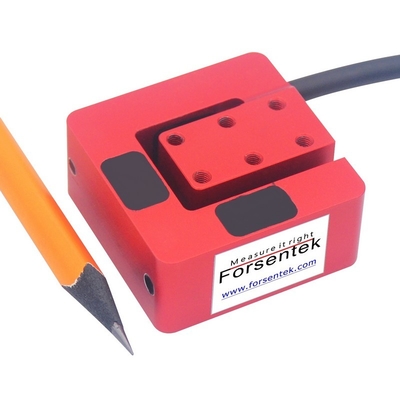

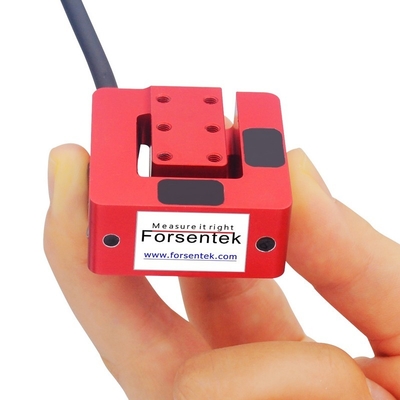

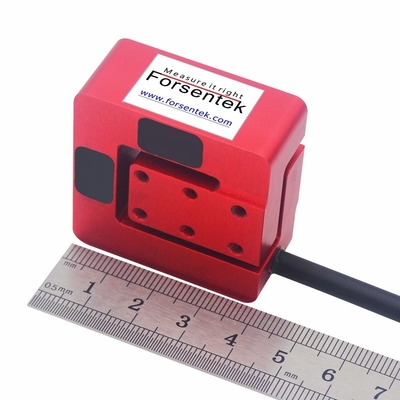

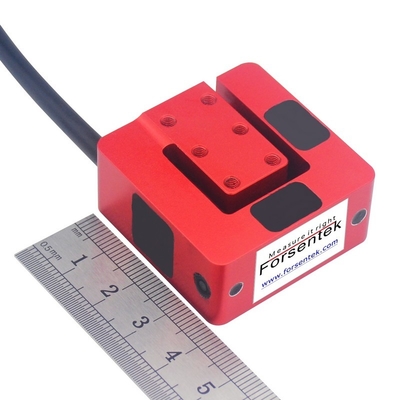

Large Image :  Small Size Multi-axis Load Cell 100kg 50kg 3-Axis Load Cell 20kg 10kg 5kg Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: F3N
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 1-5 weeks
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2185pcs/month
Detailed Product Description
Usage: 3-axis Force Measurement Type: Triaxial Load Cell
Force Range: 5/10/20/50/100kg Output: Analog Sensor
Load Direction: Fx/Fy/Fz

Small Size Multi-axis Load Cell 100kg 50kg 3-Axis Load Cell 20kg 10kg 5kg

Small Size 3-axis Load Cell F3N is designed to measure both tension and compression load in Fx/Fy/Fz axis. Three independent wheatstone bridges are bonded on corresponding beams to deliver mV output proportional to the applied force, 0-5V / 0-10V / 4-20mA output is available through multi-channel amplifier LC3A. Small size Multi-axis Force Sensor F3N offers 5kgf / 10kgf / 20kgf / 50kgf / 100kgf five rated capacities for all 3 axes. Miniature triaxial load cell F3N utilizes 1000 ohms high resistance bridge, this makes it consume less power and suitable for battery powered measuring systems. Typical applications for multi-axis sensor F3N are for example friction force measurement, force simulation in medical rehabilitation equipment, force feedback in robotics, force monitoring in handing devices, mechanical anti-collision, and so on.

10kg_multi_axis_load_cell_20kg

Ordering code of multi-axis load cell F3N

Ordering

code

Capacity Material
Fx=Fy=Fz
F3N-50N 50N

Aluminum alloy

F3N-100N-A 100N
F3N-200N-A 200N
F3N-100N-S 100N

Stainless steel

F3N-200N-S 200N
F3N-500N 500N
F3N-1kN 1000N

2kg_3-axis_load_cell_1kg

Specifications

Rated Capacity

50N / 5kgf / 11 lb

100N / 10kgf / 22lb

200N / 20kgf / 45 lb

500N / 50kgf / 112lb

1000N / 100kgf / 225lb

Sensitivity 1.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Non-linearity ±0.3% of the capacity
Hysteresis ±0.3% of the capacity
Non-repeatability ±0.1% of the capacity
Creep(5min) ±0.2% of the capacity
Safe overload 150% of the capacity
Ultimate overload 200% of the capacity
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift on zero ±0.03% R.O./oC
Temperature shift on span ±0.02% R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±100 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element

Aluminum alloy or Stainless steel

Cable

Ø5*3000mm 12-wire shielded cable

Wiring code

4-wire connection for each axis



Small Size Multi-axis Load Cell 100kg 50kg 3-Axis Load Cell 20kg 10kg 5kg

5kg_multi_axis_load_cell_10kg

3-axis force load cell F3N measures forces simultaneously in 3 mutually perpendicular axes: X, Y, and Z – tension and compression. Each axis provides a full bridge output proportional to the applied force and requires no mathematical manipulation. The acting force causes deformation of the elastomer, the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge, under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the transducer.

Load cell output: = (Power supply * Rated output) * Load / Capacity

Rated output of triaxial force sensor F3N is around 1.0mV/V.

Power supply of 3-axis load cell F3N is normally within 3-15V.

Load / Capacity is within 0-1.

So the output range of Multi-axis Force Sensor F3N is normally within -15mV...+15mV for bidirectional force measurement in each axis.

Example: Multi axis load cell F3N-50N with 1.0mV/V sensitivity powered by 10V DC, the output range is -10mV...+10mV.

A multi-channel signal conditioner can be used with 3D transducer F3N to deliver -5~5V, 0-10V or 4-20mA output.

Example: 3-axis force sensor F3N-10N working with LC3A(-10-10V)-24V amplifier, the Force-Voltage relationship in each axis will be 0-10N load in Fx+/Fy+/Fz+ direction VS 0-10V output, 0-10N load in Fx-/Fy-/Fz- direction VS 0-(-10V) output, which is linear regardless of the measurement error.

Small Size Multi-axis Load Cell 100kg 50kg 3-Axis Load Cell 20kg 10kg 5kg


5kg_3-axis_load_cell_10kg
Click here to download datasheet
