| Usage: | Three-dimensional Force Measurement | Type: | 3D Load Cell |
|---|---|---|---|
| Force Range: | 100/200/300/500N | Output: | Analog Sensor |
| Load Axis: | Fx/Fy/Fz |

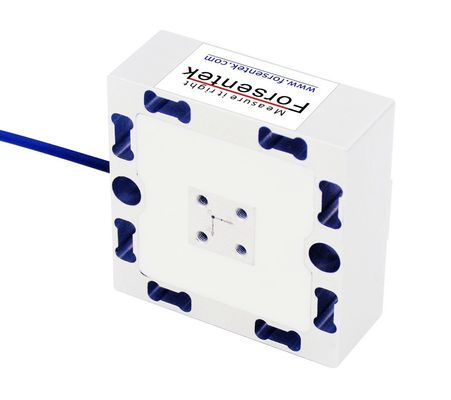

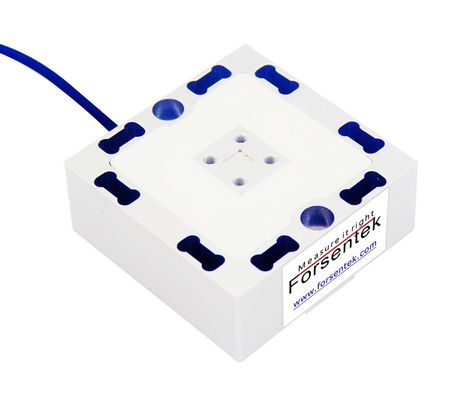

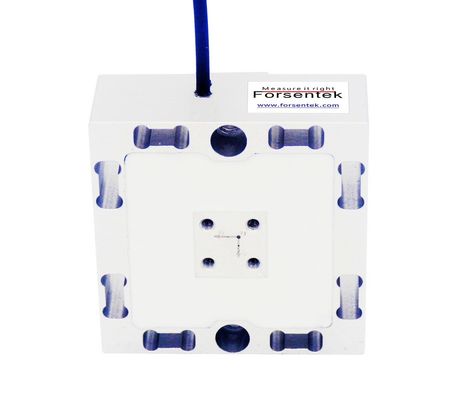

Multi-axis Force Sensor 100N 200N 300N 500N 3-Axis Load Cell
The F3U 3-axis load cell is an advanced multi-axis force sensor engineered to deliver high-precision and reliable three-dimensional force measurement across the X, Y, and Z directions. Designed for both tension and compression applications, this 3-axis force sensor provides outstanding accuracy and repeatability, making it ideal for use in robotics, automation, and industrial testing environments. With rated capacities of 100N, 200N, 300N, and 500N, the F3U 3D load cell is built to perform under varying load conditions. The 100N and 200N models feature lightweight aluminum construction for sensitivity and agility, while the 300N and 500N versions utilize rugged stainless steel to ensure superior durability and long-term stability under heavy loads. Each axis incorporates a dedicated Wheatstone bridge circuit, offering stable mV/V output signals without complex computational corrections. When connected to an external signal conditioner or amplifier, the sensor can easily output 0–5V, 0–10V, or 4–20mA signals, providing flexible integration into diverse measurement systems.
Precision-engineered for demanding applications, the F3U multi-axis load cell minimizes cross-talk between axes and delivers consistent, linear responses even in complex force environments. This compact and robust sensor enables accurate multi-directional load monitoring, making it a trusted choice for research laboratories, robotic grippers, industrial automation systems, and material testing platforms. The 3-axis load cell ensures excellent performance in dynamic load detection, capturing real-time force data crucial for advanced control systems and performance evaluation. Forsentek’s commitment to innovation is reflected in its ability to offer custom-designed 3D load cell solutions tailored to specific project needs—ensuring precise, reliable, and repeatable three-dimensional force measurement in even the most challenging operational settings. Whether for precision robotics or high-level scientific analysis, the F3U 3-axis load cell represents the perfect balance between accuracy, durability, and integration flexibility.
Ordering code of 3D load cell F3U
|
Ordering code |
Capacity |
| Fx=Fy=Fz | |
| F3U-100N | 100N |
| F3U-200N | 200N |
| F3U-300N | 300N |
| F3U-500N | 500N |
Specifications
| Rated Capacity |
100N 200N 300N 500N |
| Sensitivity | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% of the capacity |
| Hysteresis | ±0.3% of the capacity |
| Non-repeatability | ±0.1% of the capacity |
| Creep(3min) | ±0.2% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 233±30 ohms |
| Output resistance | 700±20 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element |
100N/200N: Aluminum 300N/500N: Stainless steel |
| Cable |
Ø3*3000mm 8-core shielded cable |
