Product Details:
Payment & Shipping Terms:
|
| Usage: | Rotating Torque Measurement | Type: | Micro Rotary Torque Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Torque Measurement Direction: | Clockwise&Counterclockwise |
| Capacity: | 1NM 2NM 3NM 5NM(Customizable) |

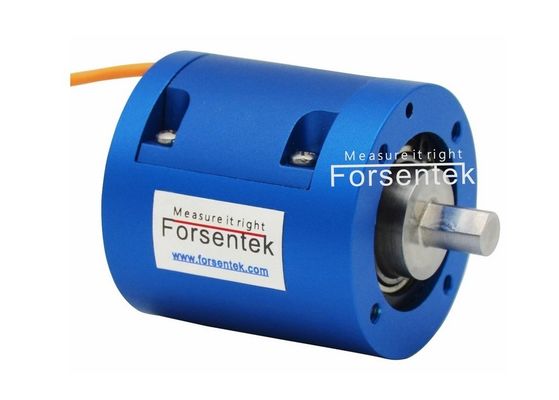

Miniature Dynamic torque sensor 1NM 2NM 3NM 5NM Rotary torque transducer
Specifications
| Rated capacity | 1NM 2NM 3NM 5NM(Customizable) |
| Rated output | 1.0 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.25% R.O. |
| Hysteresis | ±0.25% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP40 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

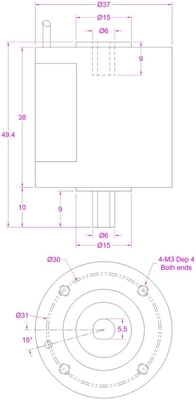

Miniature dynamic torque sensor 1NM 2NM 3NM 5NM
