M16 Threaded Compression Load Cell 50kg 100kg 200kg 300kg 500kg 1000kg

Good quality 3 axis force sensor for sales
Good quality 3 axis force sensor for sales
I'm Online Chat Now

M16 Threaded Compression Load Cell 50kg 100kg 200kg 300kg 500kg 1000kg

China M16 Threaded Compression Load Cell 50kg 100kg 200kg 300kg 500kg 1000kg supplier
M16 Threaded Compression Load Cell 50kg 100kg 200kg 300kg 500kg 1000kg supplier M16 Threaded Compression Load Cell 50kg 100kg 200kg 300kg 500kg 1000kg supplier M16 Threaded Compression Load Cell 50kg 100kg 200kg 300kg 500kg 1000kg supplier M16 Threaded Compression Load Cell 50kg 100kg 200kg 300kg 500kg 1000kg supplier

Large Image :  M16 Threaded Compression Load Cell 50kg 100kg 200kg 300kg 500kg 1000kg

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCMA

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 6000pcs/month
Contact Now
Detailed Product Description
Usage: Force Measurement/Weighing Theory: Strain Gauge Load Cell
Output: Analog Sensor Material: Alloy Steel
Capacity: 30kg 50kg 100kg 200kg 300kg 500kg 1000kg Loading Direction: Tension And Compression
Connection: M16 Threaded Hole

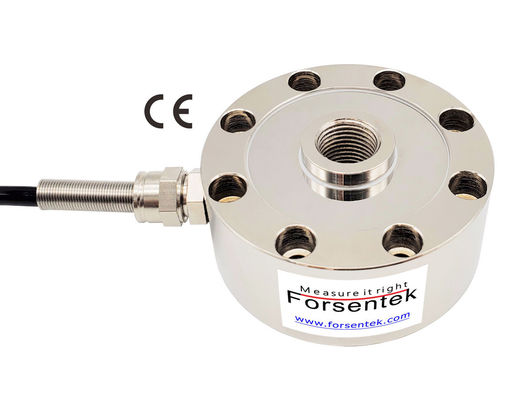

M16 Threaded Compression Load Cell 50kg 100kg 200kg 300kg 500kg 1000kg

M16 threaded Compression Load Cell FCMA is made of high stiffness alloy steel based on foil strain gauge technology to deliver 2.0mV/V rated output proportional to the applied force.Pancake load cell FCMA offers 30kg / 50kg / 100kg / 200kg / 300kg / 500kg / 1000kg seven different measuring ranges with maximum 0.1% non-linearity of the rated output to choose from intended for both static and dynamic force measurement,low profile load cell FCMA can be used for both tension and compression measurement,low profile structure makes it also suitable for in-line force monitoring. Model FCMA is designed with a M16x1.5 threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other adapters for force loading,this makes spoke type load cells very adaptable to various cases,you may find pancake type load cell FCMA applicable for force measurement in injection-molding machines,press machines and material testing equipment,weight measurement for tanks,vessels and hoppers, and so on.

compression load sensor 50kg 100kg 200kg 300kg 500kg 1000kg

Specifications

Capacity

30kg / 300N / 66lbf

50kg / 500N / 110 lbf

100kg / 1kN / 220 lb

200kg / 2kN / 440lb

300kg / 3kN / 660lbf

500kg / 5kN / 1.1k lb

1000kg / 10kN / 2.2klbf

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Alloy steel
Cable Ø5*2000mm 4-core shielded
Wiring code Red--E+ Black--E- Green--S+ White--S-

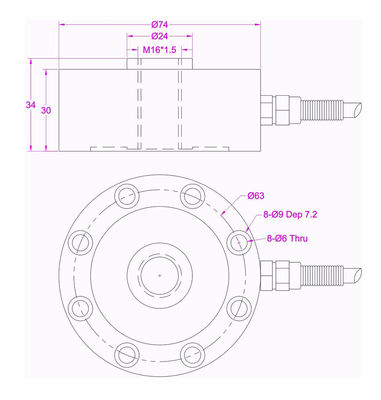

Compression Type Load Cell 300N 500N 1kN 2kN 3kN 5kN 10kN for Compression Force Measurement

compression loadcell 1000kg 500kg 300kg 200kg 100kg 50kg

Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: FCMA-500kg with 2.0mV/V power by 3.3V DC,the output range is 0~6.6mV proportional to the applied load.
Example two: FCMA-300kg with 1.9mV/V power by 10V DC,the output range is 0~19mV proportional to the applied load.

Load cell + Signal amplifier:
Load cell normally outputs -30mV...+30mV which sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression load cell sensor FCMA-200kg working with 0-10V amplifier,the load-output relationship will be 0-200kg load VS 0-10V output,when you get 5V output,it means the current load on the loadcell is 100kg.

Click here to download datasheet
