| Usage: | Force Measurement | Type: | Compression Load Cell |
|---|---|---|---|
| Output: | Analog | Capacity: | 0-5000kN(Selectable) |
| Mounting: | Flange To Flange |
Flange mount compression force transducer 5000kN 3000kN 2000kN 1000kN 500kN 300kN

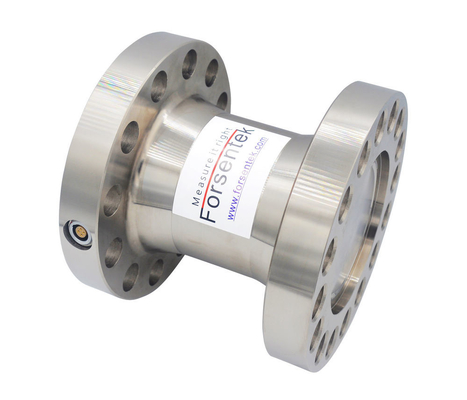

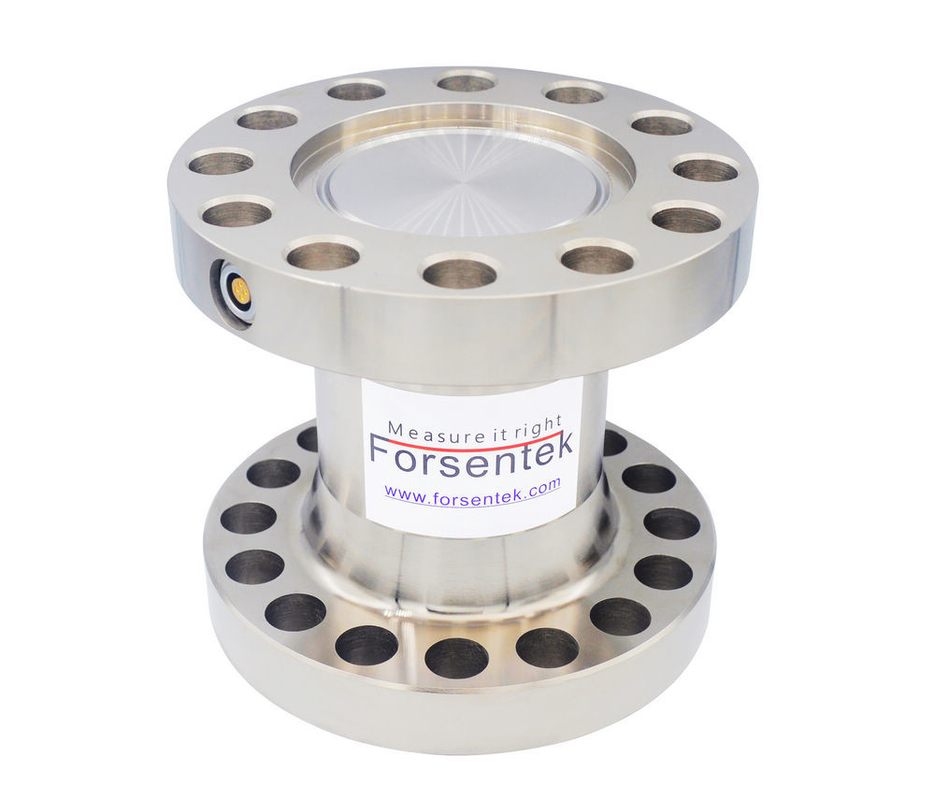

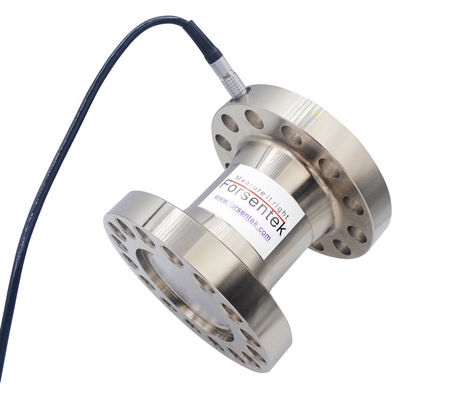

Flange Mounted High Capacity Compression Load Cell FCRF is made of alloy steel based on strain gauge technology adopting a column design that has a flange-to-flange mount for easy installation. High range Compression Force Sensor FCRF offers 0-30te / 0-50te / 0-60te / 0-100te / 0-150te / 0-200te / 0-250te / 0-300te / 0-400te / 0-500te ten rated measuring ranges to choose from. You may find column load cell FCRF applicable for pile load test, bridge load monitoring, injection molding machines, structure testing, rolling mills and so on.

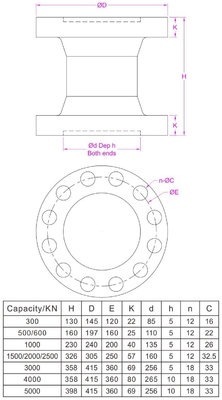

Dimensions(Unit in "mm")
Specifications
| Capacity |
300kN / 30 ton 500kN / 50 ton 600kN / 60 ton 1000kN / 100 ton 1500kN / 150 ton 2000kN / 200 ton 2500kN / 250 ton 3000kN / 300 ton 4000kN / 400 ton 5000kN / 500 ton |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity |
±0.3% R.O. (>600kN ±0.5% of R.O.) |
| Hysteresis |
±0.3% R.O. (>600kN ±0.5% of R.O.) |
| Nonrepeatability |
±0.1% R.O. (>600kN ±0.2% of R.O.) |
| Creep(3min) | ±0.1% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 780±50 ohms |
| Output resistance | 750±50 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Alloy steel |
| Cable | Ø5*5000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer which is normaly within -30mV...+30mV.A signal amplifier can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA for further signal processing.
Flange-to-flange compression force sensor 5000kN 3000kN 2000kN 1000kN 500kN 300kN
