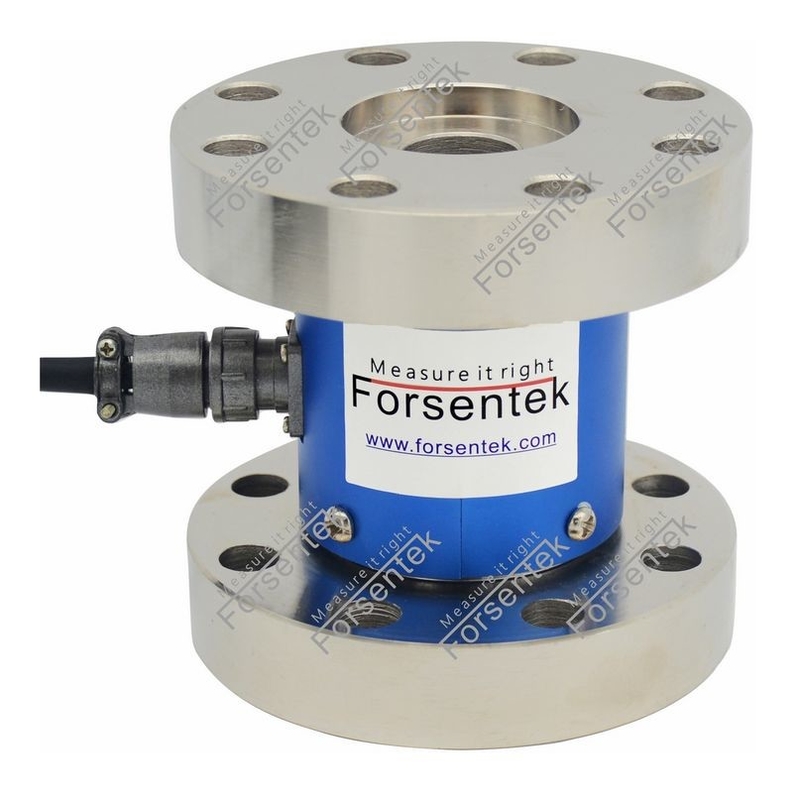

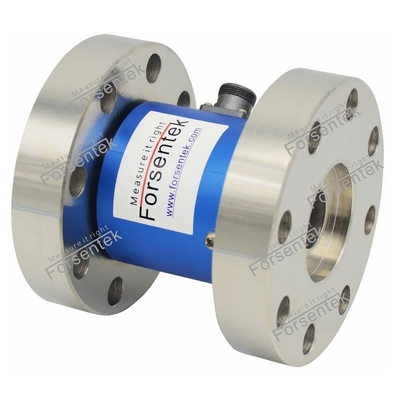

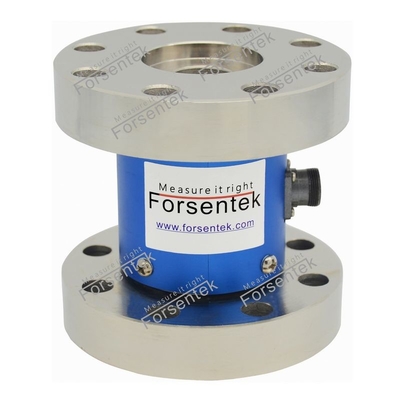

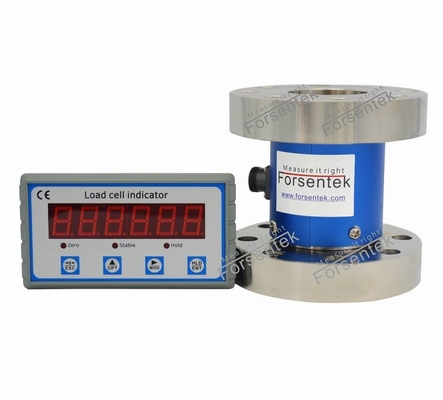

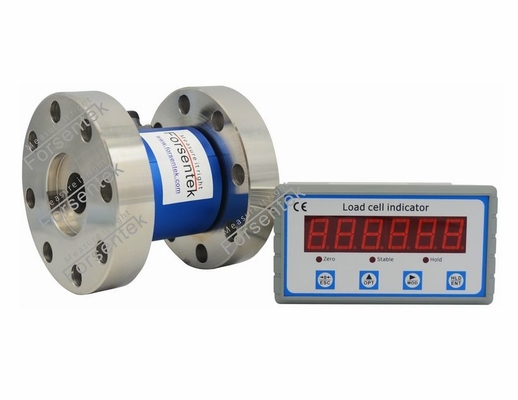

Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer

Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer

Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer
Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer

Large Image :  Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FT03
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3~20 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2650pcs/month
Detailed Product Description
Usage: Torque Measurement Type: Reaction Torque Transducer
Output: Analog Sensor Mounting: Flange-to-flange

Reaction torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer

flange torque sensor
Features

  • Alloy steel construction
  • Flange mounting,easy to install
  • Strain gauge technology,analog output
  • Non-rotating torque measurement

reaction torque sensor
Dimensions
static torque trasnducer 1000NM

torque transducer 10000NM 5000NM 2000NM 1000NM 500NM
Specifications

Capacity

200NM 300NM 500NM 1000NM 2000NM 3000NM

5000NM 10000NM 20000NM 30000NM 40000NM

50000NM 60000NM 100000NM

Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity ±0.25% R.O.
Hysteresis ±0.25% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 700±100 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP62
Material of element Alloy steel
Cable Ø5.5*3000mm 4-core shielded
Wiring code Red--E+ Green--E- Yellown--S+ White--S-



Reaction torque transducer 0-100kNM torque measurement transducer
torque sensor DF-30
torque measurement

Click here to download datasheet
