| Usage: | Rotating Torque Measurement | Type: | Rotary Torque Meter |
|---|---|---|---|
| Output: | Analog Sensor | Torque Direction: | Clockwise&Counterclockwise |
| Capacity: | 0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM | Structure: | Shaft-to-shaft |
Rotating shaft torque measurement device Dynamic torque measurement sensor
Shaft to shaft dynamic torque sensor FYF is a torque transducer intended for rotating torque measurement,slip rings are used to conduct the millivolt signal from the wheatstone bridge bonded on the sensing shaft which can rotates together with motor shaft and get the torque measured.Rotary torque sensor FYF offers 0-0.1NM / 0-0.2NM / 0-0.5NM / 0-1NM / 0-2NM / 0-3NM / 0-5NM measuring ranges to choose from. Torque meter FYF can be mounted between motor and load through couplings.Model FYF supports maximum 4000RPM rotating speed in both clockwise and counterclockwise direction.Signal conditioner and display unit can also be supplied to display the torque value and output 0-5V/0-10V/4-20mA analog signal.Typical applications for this type of torque cell are for example torque measurement of valves,servo motors,pumps and so on.
Features
Specifications
| Rated capacity |
0.1NM / 0.88 lbf*in 0.2NM / 1.77 lb-in 0.5NM / 4.4 lbf-in 1NM / 8.8 lb*in 2NM / 17.7 lbf-in 3NM / 26.5 lbf-in 5NM / 44 lbf*in |
| Rated output | 1.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP40 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded cable |
| Wiring code |
Red--Excxcitation+ Black--Excitation- |

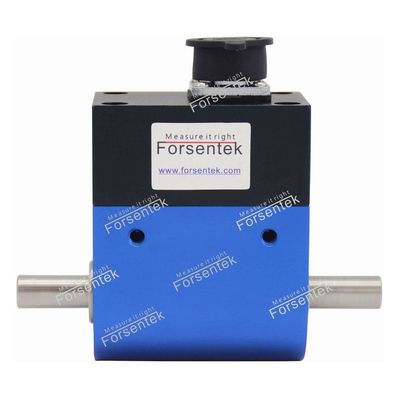

Shaft to shaft rotary torque sensor FYF
A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Dynamic torque sensor is designed to measure rotating torque like electric motor torque,rotating shaft torque,mixture torque,etc..
Connecting with torque meter FPT,the measured torque can be real-time displayed,FPT also supports RS485 or RS232 communication interface,amplified signal 0-5V/0-10V/0-20mA/4-20mA is also achievable from FPTC and FPTD.
Dimensions
