Detailed Product Description
Usage: Weight Measurement Transducer Type: Low Profile Load Cell
Output: Analog Weight Sensor Load Direction: Compression
Capacity: 30kg/75kg/150kg/300kg

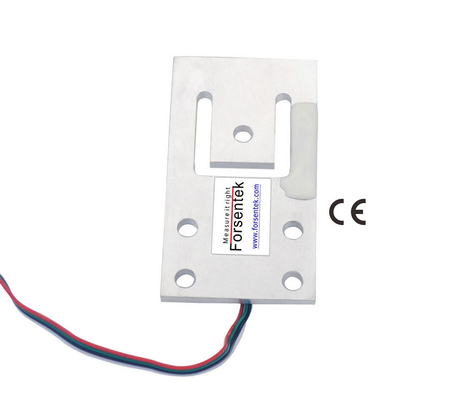

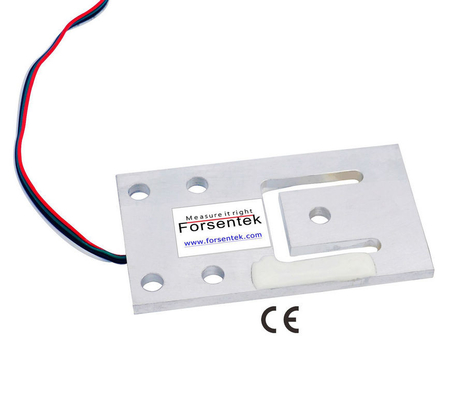

Low Profile Weight Transducer 30kg 75kg 150kg 300kg Compact Weight Measurement Sensor

Low Height Weight Sensor FHA is produced based on strain gauge technology with CE certified. Low profile compression load cell FHA offers 0-30kg / 0-75kg / 0-150kg / 0-300kg four measuring ranges to choose form, high accuracy with 0.05% non-linearity of the full capacity. Low profile load cell FHA utilizes 1000ohms gauges which has better performance compared to commonly used 350ohms gauges in terms of power consumption and long term stability. Compact design enables the construction of scales with an extremely low overall height, affordable load cell FHA is also suitable for battery powered weighing devices.
low profile weight sensor 50kg 100kg 200kg

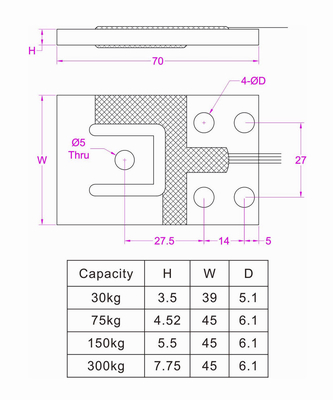

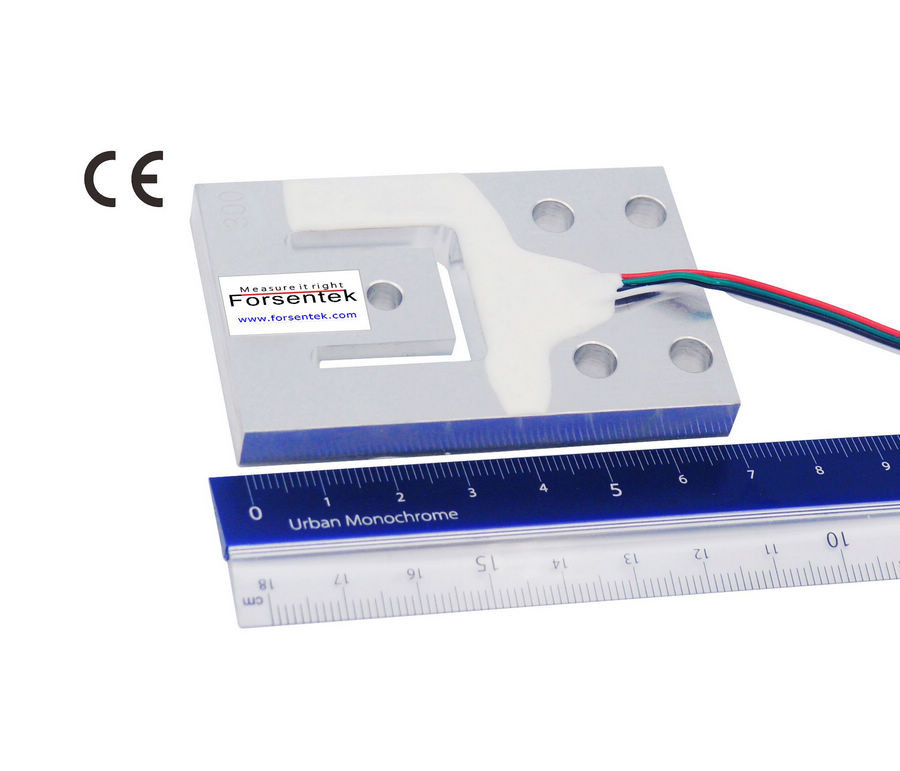

Dimensions(in milimeter)
100kg low profile compression sensor 200kg
Specifications

Capacity

30kg / 300N / 66 lb
75kg / 750N / 165lb
150kg  / 1500N / 330 lb
300kg / 3000N / 660lb

Rated output1.5/2.0 mV/V
Excitation3-10V
Zero balance±0.1mV/V
Nonlinearity±0.05% R.O.
Hysteresis±0.05% R.O.
Nonrepeatability±0.05% R.O.
Creep(3min)±0.05% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Operating temperature-10...+40oC
Temperature shift zero±0.2% R.O./oC
Temperature shift span±0.05% R.O./10oC
Input resistance1120±50 ohms
Output resistance1000±10 ohms
Insulation resistance>2000M ohms
Ingress protectionIP65
Material of elementAluminum alloy
Cable30kg/75kg — 32AWG 400mm 4-wire
150kg/300kg — 32AWG 150mm 4-wire
Wiring code

Red--Excitation+   Black--Excitation-
Green--Signal+   White--Signal-


Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of the sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of thin weight sensor FHA is normally within 1.5mV/V~2.0mV/V.
Power supply of compact load cell FHA is normally within 3-10V.
Load / Capacity is within 0-1.
So the output signal range of weight transducer FHA is normally within 0-20mV.
Example one: Planar beam load cell FHA-30kg with 1.5mV/V rated output powered by 10V DC ,the output range is 0~15mV.
Example two: Low profile weight sensor FHA-300kg with 2mV/V rated output powered by 5V DC ,the output range is 0~10mV.
Load cell zero output:The output signal of the loadcell with no-load applied,expressed in mV/V or as a percentage of rated output.The zero output is caused by the stress during strain gauge bonding,it can be handled during calibration or signal processing without affecting the measurement accuracy.
