Usage: Force Measurement Type: Low Profile Load Cell
Output: Analog Sensor Capacity: 500N 1000N 2000N
Connection: M8

Low Profile Compression Force Transducer 2000N 1000N 500N Force Sensor

Low Profile Compression Load Cell FCB-A utilizes strain gauge technology inteneded for both tension and compression force measurement. Compact design, suitable for force measuring applications where installation height is limited. Low profile tension compression load cell FCB-A offers 0-500N / 0-1kN / 0-2kN three rated measuring ranges with mV/V output as standard,0-5V or 4-20mA output is available through external amplifier. Different force loading tools can be mounted to the M8*1 threaded hole located at the center of the force sensor for different applications. Force transducer FCB-A is RoHS compliant and CE certified, it can be modified or customized as per client's request.

low profile compression load cell 2kN 1kN 500N

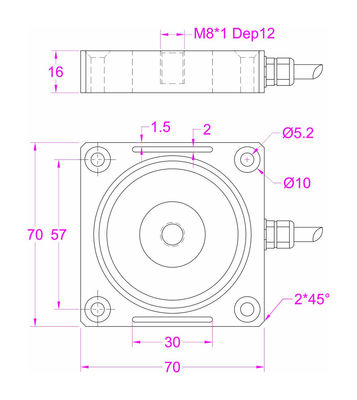

Dimensions(Unit in "mm")

low profile compression force sensor 2kN 1kN 500N

Specifications

Capacity

500N / 50kg / 110lb

1000N / 100kg / 220lb

2000N / 200kg / 440lb

Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 750±30 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable Ø4*2000mm 4-core shielded
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-



A load cell (or loadcell) is a type of transducer, specifically a force transducer. It converts an input mechanical force such as load, weight, tension, compression into another physical variable, in this case, into an electrical output signal that can be measured, converted and standardized. As the force applied to the force sensor increases, the electrical signal changes proportionally under constant excitation, thus the load/force can be measured by measuring the output signal from the transducer. The output range of FCB-A is normally within -25mV...+25mV(tension and compression), signal amplification may be required for most applications, a signal conditioner can be used to convert mV signal into -5~5V, 0-10V or 4-20mA output for easy data processing. Taking compression force load cell FCB-A-2kN working with amplifier FSC(0-10V)-24V for example,the force-voltage relationship will be compression force 0-2000N VS 0-10V output, 1V corresponds to 200N force, 5V output corresponds to 1000N force,and so on.

Low Profile Compression Load Cell 2000N 1000N 500N Force Measurement Transducer

low profile compression load cell 200kg 100kg 50kg

Click here to download datasheet
