| Usage: | Tension Force Measurement | Theory: | Strain Gauge Load Cell |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 1KN 2KN 3KN 5KN |

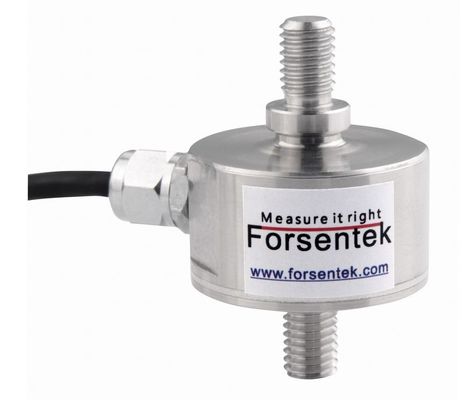

Tension compression load cell 1KN 2KN 3KN 5KN
Features
Applications
Specifications
| Capacity | 1KN 2KN 3KN 5KN |
| Rated output | 1.5mV/V |
| Excitation | 5-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(30min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.01% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Stainless steel |
| Cable | Ø4*2800mm |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Tension compression load cell with CE certificate
Tension compression load cell FL34 is produced based on strain gauge technology with -20~20mV analog output.-5~5V/0-10V/4-20mA output is achievable through external signal conditioner.
Dimensions
