| Type: | Rod End Load Cell | Usage: | Force Measurement |
|---|---|---|---|
| Load Direction: | Traction And Compression | Load Range: | 5kg 10kg 20kg 50kg |
| Output: | Analog Sensor | Connection: | M4 Threaded Rod |

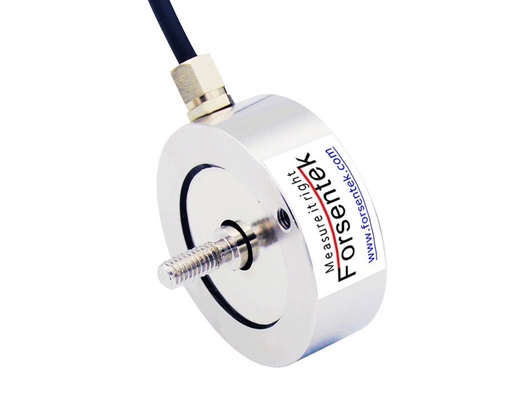

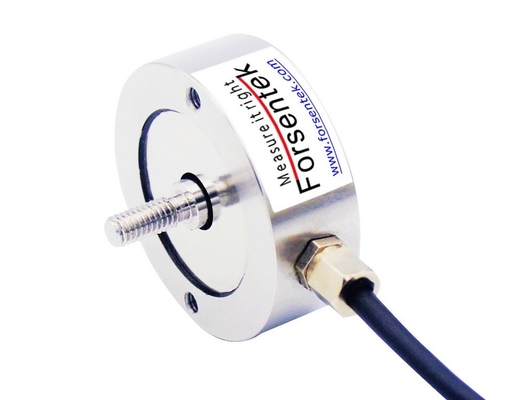

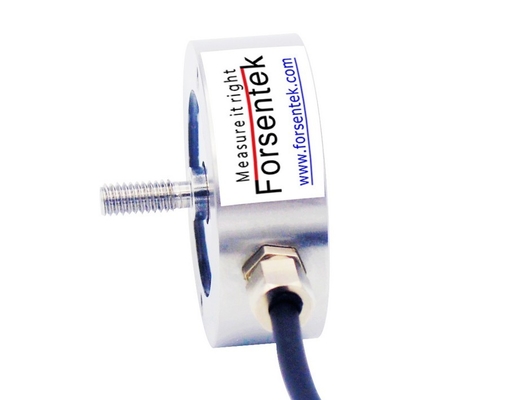

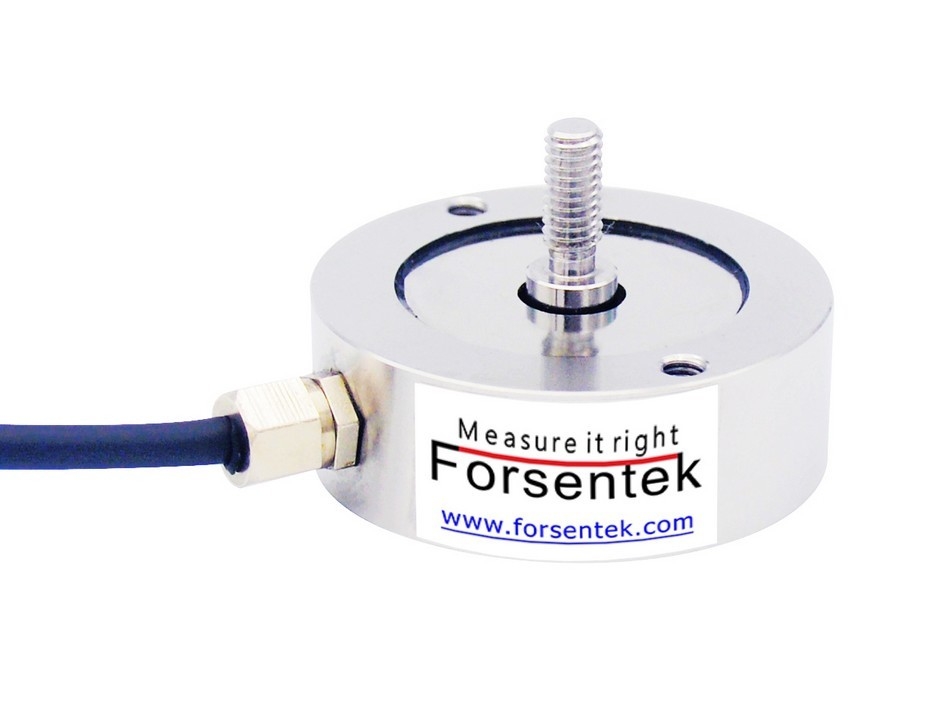

Rod End Load Cell 500N 200N 100N 50N Tension Compression Sensor

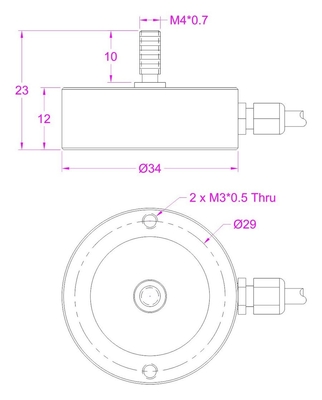

Tension Compression Sensor FLXK is made of 17-4 stainless steel based on strain gauge technology intended for both traction and compression force measurement. Force sensor FLXK is designed with an M4 threaded rod at the top center of the transducer. The 2 x M3 tapped holes located at the outer circle of the sensor can be used to fix the loadcell to a flat and solid surface, while the M4 threaded rod can be used for force loading. Bidirectional force transducer offers 0-5kg / 0-10kg / 0-20kg / 0-50kg four rated measuring ranges, it can be modified or customized upon request.
| Ordering code | Measuring Range | Force direction |
| FLXK-5kg | 0-5kgf |
Traction and Compression |
| FLXK-10kg | 0-10kgf | |
| FLXK-20kg | 0-20kgf | |
| FLXK-50kg | 0-50kgf |
Specifications
| Rated capacity |
5kg 10kg 20kg 50kg (50N 100N 200N 500N) |
| Rated output | 1.3mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% of R.O. |
| Hysteresis | ±0.3% of R.O. |
| Nonrepeatability | ±0.1% of R.O. |
| Creep(5min) | ±0.1% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection |
IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*2000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Rod End Load Cell FLXK is normally around 1.3mV/V.
Power supply of Traction Compression Load Cell FLXK is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of force sensor FLXK is normally within -15.6mV…+15.6mV for tensile and compressive force measurement.
Example: Threaded Rod End Load Cell FLXK-5kg with 1.3mV/V sensitivity powered by 10V DC, the output range is -13mV...+13mV.
The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Tension And Compression Sensor FLXK-10kg working with amplifier FSC(-10-10V)-24V, the Load-Voltage relationship will be 0-10kg compression force VS 0-10V output, 0-10kg traction force VS 0-(-10V), which is linear regardless of the measurement error, 1V output corresponds to 1kgf compressive load, (-2V) output corresponds to 2kgf tensile load, and so on.
