| Usage: | Force Measurement | Load Direction: | Compression |
|---|---|---|---|
| Capacity: | 50kg 100kg 200kg 500kg 1000kg | Structure: | Flange-to-Flange |
| Principle: | Strain Gauge Load Cell | Output: | 0-10V |
| Material: | Stainless Steel |

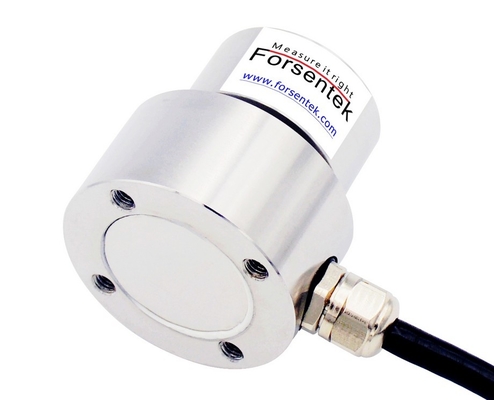

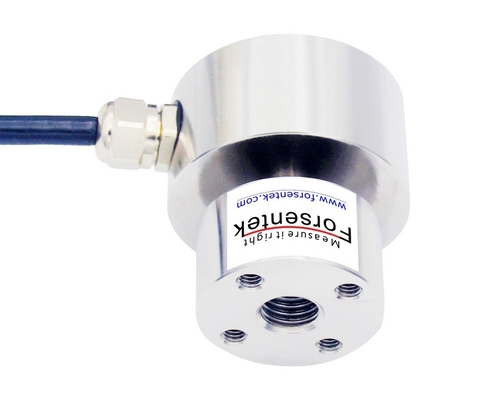

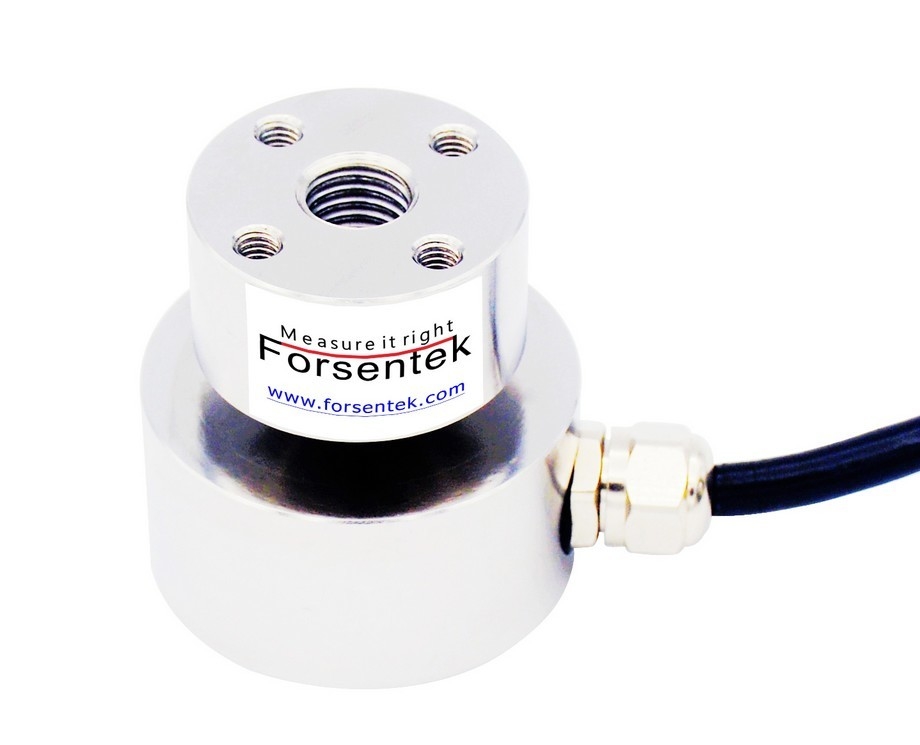

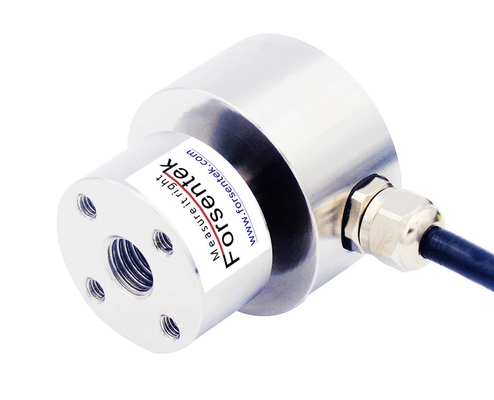

50kg 100kg 200kg 500kg 1t Compression Load Cell With 0-10V Output
Flange Type Compression Load Cell FXFE is made from stainless steel based on proven strain gauge technology, it offers 50kgf / 100kgf / 200kgf / 500kgf / 1000kgf five rated capacities intended for pressure force measurement. The flanged surface enables it to be easily mounted between two assemblies. Force Transducer FXFE uses a built-in amplifier circuit to convert the mV signal from the wheatstone bridge into 0-10V output, which can be easily recognized and processed.
Specifications
| Capacity |
50kg / 100kg / 200kg / 500kg / 1000kg 500N / 1kN / 2kN / 5kN / 10kN |
| Rated output | 0-10V |
| Excitation | 15-24V DC |
| Zero balance | <0.06V |
| Nonlinearity | ±0.5% of capacity |
| Hysteresis | ±0.5% of capacity |
| Nonrepeatability | ±0.2% of capacity |
| Creep(5min) | ±0.1% of capacity |
| Safe overload | 150% of capacity |
| Ultimate overload | 200% of capacity |
| Operating temperature | -10...+50oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø5*2000mm 4-core shielded cable |
50kg 100kg 200kg 500kg 1t Compression Load Cell With 0-10V Output
