| Usage: | Force Measurement | Measure Direction: | Compression And Traction |
|---|---|---|---|
| Force Range: | 20N 50N 100N 200N 500N 1kN | Material: | Stainless Steel |
| Connection: | M4 Tapped Hole | Output: | Analog Load Cell |
Small Size Compression Load Cell 10kg 100N Force Measurement Sensor 20kg 200N

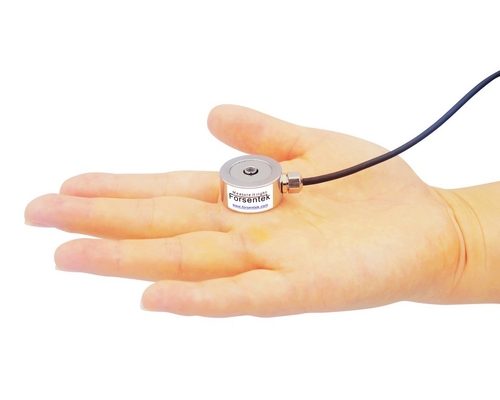

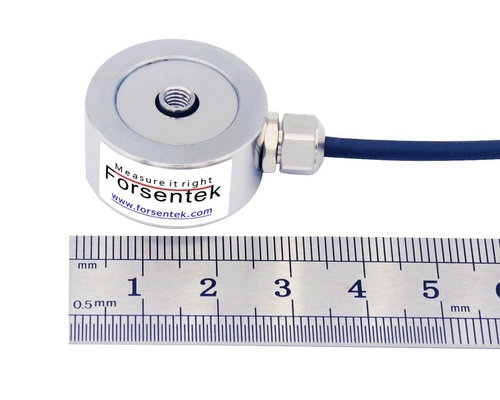

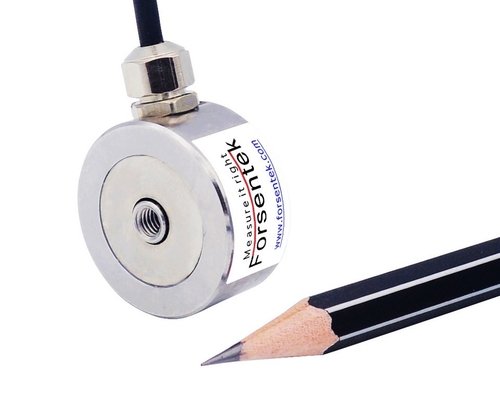

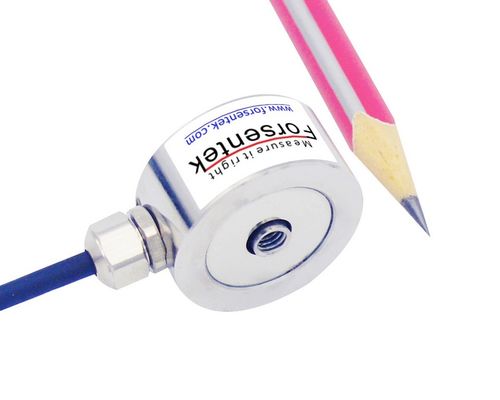

Small Size Compression Load Cell FCU is made from stainless steel based on strain gauge technology delivering unamplified mV output which is proportional to the load applied. Small Size Pancake Load Cell FCU offers 0-20N / 0-50N / 0-100N / 0-200N / 0-500N / 0-1000N six rated measuring ranges intended for both tension and compression force measurement. The miniature load cell FCU features a M4 tapped hole at the center of the transducer which can be used to mount attachments such as load buttons or eye bolts to fit different applications. Micro Load Cell FCU is applicable for both static and dynamic force measurement. Model FCU can also be modified or customzied as per requirements of our clients.
Dimensions
Specifications
| Capacity |
20N / 2kg / 4.5 lbf 100kg / 1kN / 220lb |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 352±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- |
Small Size Compression Load Cell 10kg 100N Force Measurement Sensor 20kg 200N
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of miniature compression load cell FCU is normally around 1.5mV/V.
Power supply of small compression sensor FCU is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of miniature force sensor FCU is normaly within -18mV...+18mV for bidirectional force measurement.
Example: Miniature Load Cell FCU-1000N with 1.5mV/V power by 5V DC,the output range is -7.5mV...+7.5mV proportional to the applied force.
Load cell + Signal amplifier:
The mV output from the loadcell transducer sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression Force Load Cell FCU-200N working with 0-10V amplifier,the load-output relationship will be 0-200N compressive load VS 0-10V output, 0V output corresponds to 0N, 1V output corresponds to 20N compression load, 2V output corresponds to 40N load,and so on.
