| Usage: | Force Measurement | Structure: | Button Type |
|---|---|---|---|
| Force Range: | 1kN 2kN 5kN 10kN 20kN 50kN 100kN 150kN | Type: | Compression Transducer |
| Output: | Analog Sensor |
Compression Force Sensor 1klb 2klb 4.5klbs 10klb 20klb 30klbf Button Load Cell

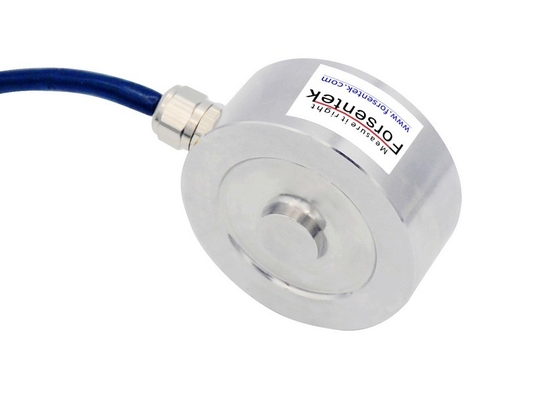

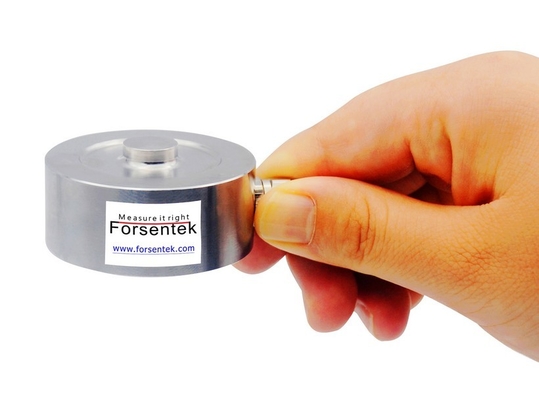

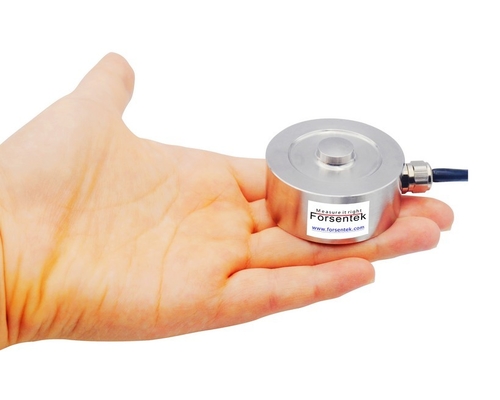

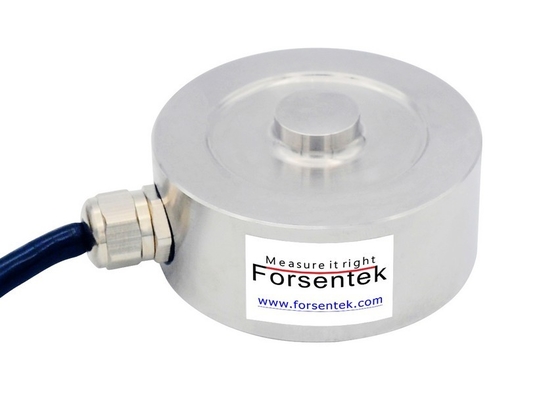

Load Button Load Cell FC50 is made of stainless steel based on foil strain gauge technology intended for compression force measurement. Button load cell FC50 offers 220lb / 450lb / 1.1klbS / 2.2klbf / 4.5kLB / 11.2klb / 22klb / 33klbf eight rated capacities with maximum 0.3% non-linearity of the rated output to choose from. Press force load cell FC50 can be used for both static and dynamic force measurement.You may find pancake load cell FC50 applicable for force measurement in injection-molding machines, press machines and material testing equipment and so on.
Dimensions
Specifications
| Capacity | 100kgf / 1kN / 220lb 200kgf / 2kN / 450lbf 500kgf / 5kN / 1.1klbs 1000kgf / 10kN / 2.2klb 2 ton / 20kN / 4.5klbf 5 ton / 50kN / 11.2klbs 10 ton / 100kN / 22klbf 15ton / 100kN / 33klb |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 750±50 ohms |
| Output resistance | 750±50 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Stainless steel |
| Cable | Ø4*3000mm 4-core shielded cable |
| Wiring code | Red--Excitation+ Black--Excitation- |
Compression Force Sensor 1klbf 2klbs 4.5klb 10klb 20klbf 30klbs Button Load Cell
Brief instruction of Rated output(Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output is pancake load cell FC50 is normally around 1.5mV/V.
Power supply of low profile load cell FC50 is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of universal load cell FC50 is normaly within 0mV...+22.5mV.
Example one: Pancake Load Cell FC50-10kN with 1.5mV/V power by 5V DC,the output range is 0mV...+7.5mV proportional to the applied load.
Example two: Button Load Cell FC50-20kN with 1.5mV/V power by 10V DC,the output range is 0mV...+15mV proportional to the applied load.
Load cell + Signal amplifier:
The mV output from the loadcell transducer sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Compression Force Load Cell FC50-100kN working with 0-10V amplifier,the load-output relationship will be 0-100kN load VS 0-10V output,0V output corresponds to 0N, 1V output corresponds to 10kN load, 5V output corresponds to 50kN force,and so on.
