Product Details:
Payment & Shipping Terms:
|
| Usage: | Clamping Force Measurement | Range: | 500N 200N 100N 50N |
|---|---|---|---|
| Type: | Miniature Load Button | Output: | Analog Transducer |
| Material: | Stainless Steel |

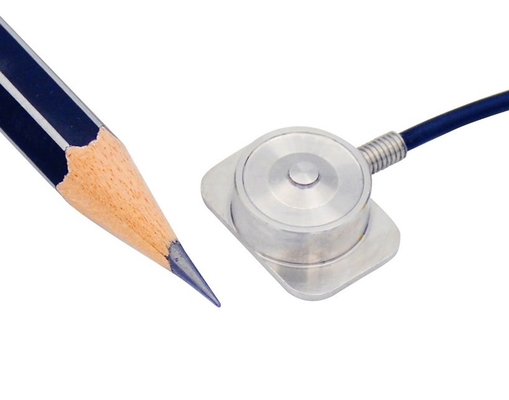

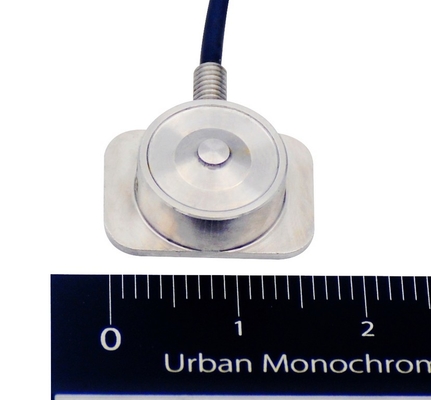

Small Size Button Type LoadCell 50kg 20kg 10kg 5kg Clamping Force Load Cell
Micro Clamping Force Load Cell FCCF is made of stainless steel based on strain gauge technology offering 50N / 100N / 200N / 500N four rated capacities intended for compression force measurement. Compact design with a mounting base makes it easy to install the transducer, 1000ohms high resistance minimizes the heat emission and improves long term stability. Miniature size enables button load cell FCCF applicable for appliations where mounting space is limited. You may find Miniature Compression Force Sensor FCCF suitable for applications such as load distribution analysis, mold pressure measurement, force overload protection, clamping force measurement, assembly force monitoring and so on.
A Load Cell is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell. Load Button Load Cell FCCF is designed to measure force in compression direction,outputs millivolt signal within 0~22.5mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to convert mV signal into -5-5V, 0-10V or 4-20mA output which is proportional to applied force.The amplified output then can be easily processed by PLCs and data acquisition software.
Dimensions
| Ordering code | Measurement Range | Force direction |
| FCCF-50N | 0-11lbf / 0-5kgf | Compression |
| FCCF-100N | 0-22lbf / 0-10kgf | |
| FCCF-200N | 0-45lbs / 0-20kgf | |
| FCCF-500N | 0-112lbf / 0-50kgf |
Specifications
| Capacity |
50N / 100N / 200N / 500N 5kgf / 10kgf / 20kgf / 50kgf 11lb / 22lbs / 45lbf / 112lb |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% of full capacity |
| Hysteresis | ±1% of full capacity |
| Nonrepeatability | ±0.5% of full capacity |
| Creep(3min) | ±0.3% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø1.9*3000mm 4-core shielded cable |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

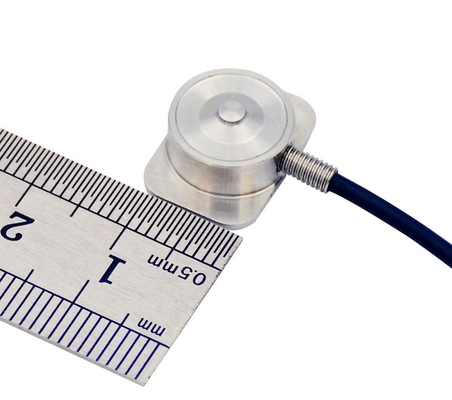

Small Size Button Type LoadCell 50kg 20kg 10kg 5kg Clamping Force Load Cell
Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Button Load Cell FCCF is normally around 1.5mV/V.
Power supply of Miniature Load cell FCCF is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Sensor FCCF is normally within 0…+22.5mV.
Example: Micro Compression Load Cell FCCF-50kg with 1.5mV/V sensitivity powered by 10V DC,the output range is 0mV...+15mV.
The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Mini Button Type Compression Load Cell FCCF-10kg working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-10kg compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 1kgf compression load, 2V output corresponds to 2kgf compression load, and so on.

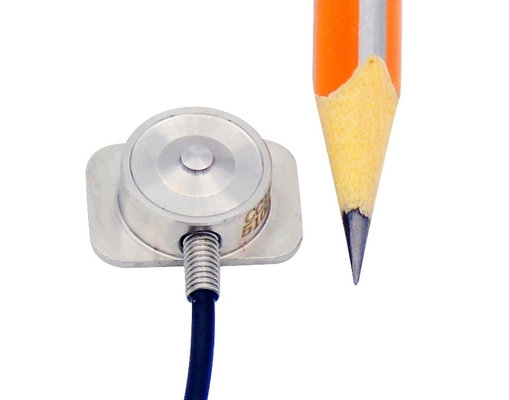

Small Size Button Type LoadCell 50kg 20kg 10kg 5kg Clamping Force Load Cell
