| Usage: | Medical Scales | Type: | Low Profile Weight Sensor |
|---|---|---|---|
| Output: | Analog Transducer | Accuracy: | C3 |
| Load Direction: | Compression | Capacity: | 3.75/7.5/15/37.5/75/150/375kg |
| Structure: | Planar Beam Loadcell |

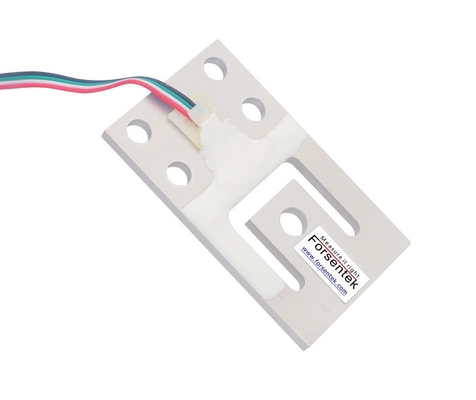

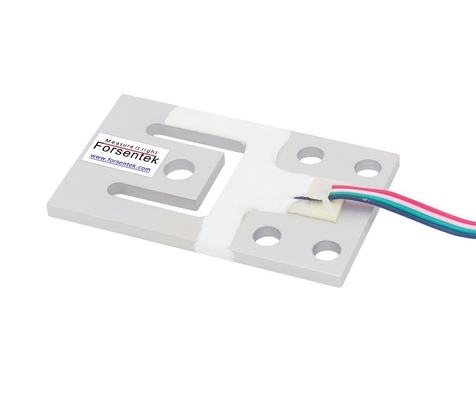

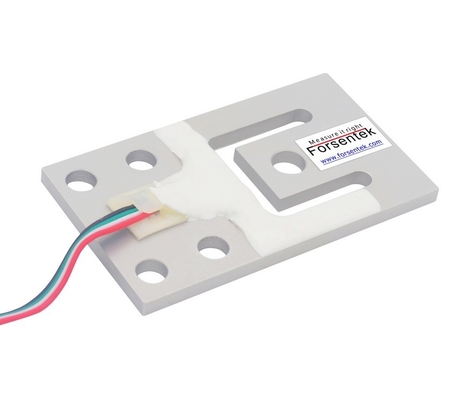

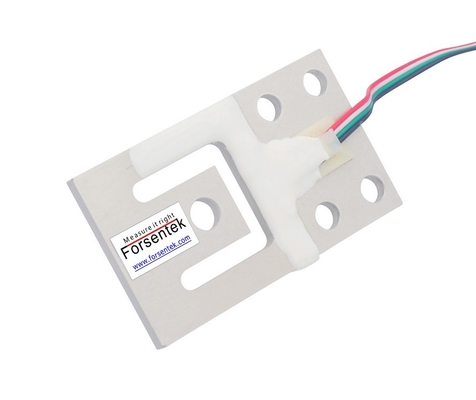

Ultra-low Profile Planar Beam Load Cell 7.5kg 15kg 37.5kg 75kg 150kg
Aluminum Planar Beam Load Cell FHPB is designed for weighing applications where a low profile solution is needed.Planar load cell FHPB utilizes aluminum construction offering 0-3.75kg / 0-7.5kg / 0-15kg / 0-37.5kg / 0-75kg / 0-150kg / 0-375kg seven measuring ranges to choose from, 1000Ω strain gauge bridge resistance makes it suitable for battery powered devices. High accuracy with 0.02% comprehensive error,very compact design, IP65 environmentally sealed by potting assures long-term stability over the entire compensated temperature range, you may find our planar beam load cells applicable retail scales, medical scales and other high precison weighing environment where space is a limiting factor.
Dimensions(in milimeter)
Specifications
|
Capacity |
3.75kg / 37.5N / 8.3lb 7.5kg / 75N / 16.5lb |
| Rated output | 1.0±0.002 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.06mV/V |
| Nonlinearity | ±0.02% R.O. |
| Hysteresis | ±0.02% R.O. |
| Nonrepeatability | ±0.02% R.O. |
| Creep(30min) |
±0.02% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Operating temperature | -20...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 1080±50 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Aluminum alloy |
| Cable | 4 x Ø1.2x1000mm |
| Wiring code |
Red--Excitation+ Black--Excitation- |
Ultra-low Profile Planar Beam Load Cell 7.5kg 15kg 37.5kg 75kg 150kg
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of the sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of Planar beam load cell FHPB is 1.0mV/V.
Power supply of thin load cell FHPB is normally within 3-15V.
Load / Capacity is within 0-1.
So the output signal range of low profile weight transducer FHPB is normally within 0-15mV.
Example one: Planar load cell FHPB-37.5kg with 1.0mV/V rated output powered by 10V DC ,the output range is 0~10mV.
Example two: Low profile weight sensor FHPB-15kg with 1.0mV/V rated output powered by 5V DC ,the output range is 0~5mV.
