Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FFG
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2555pcs/month
Detailed Product Description
Type: Thrust Load Cell Capacity: 2kg 5kg 10kg 20kg 50kg 100kg 200kg
Usage: Cylinder Thrust Measurement Force Direction: Tension And Compression
Connection: Flange To Flange Output: Analog Sensor

Thrust Load Cell 100kg Thrust Sensor 50kg Cylinder Thrust Measurement 20kg

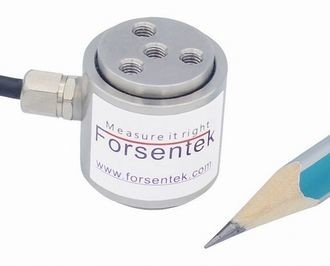

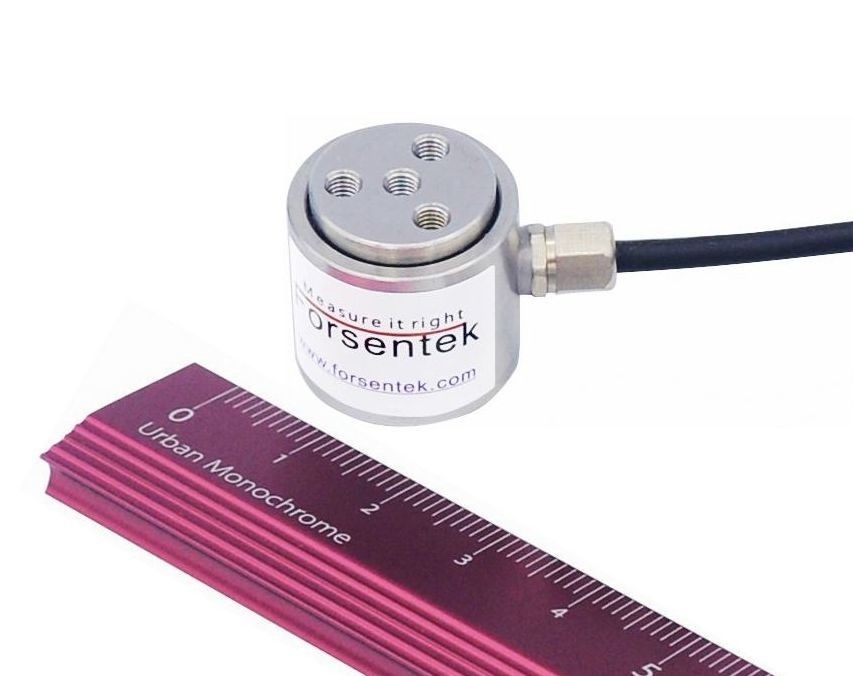

Thrust Load Cell FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated output intended for both tension and compression force measurement. Miniature thrust sensor FFG offers 0-2kg / 0-5kg / 0-10kg / 0-20kg / 0-50kg / 0-1kN / 0-2kN seven rated capacities to choose from.Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Miniature Cylindrical Thrust Load Cell FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

Thrust_Load_Cell_20kgThrust_Load_Cell_5kg

Ordering code Measurement Range Force direction
FFG-20N 0-20N / 0-2kgf Tension/compression
FFG-50N 0-50N / 0-5kgf
FFG-100N 0-100N / 0-10kgf
FFG-200N 0-200N / 0-20kgf
FFG-500N 0-500N / 0-50kgf
FFG-1kN 0-1000N / 0-100kgf
FFG-2kN 0-2000N / 0-200kgf

Specifications

Capacity

20N / 50N / 100N / 200N / 500N / 1kN / 2kN
2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg
4.4lb / 10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø3*3000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.

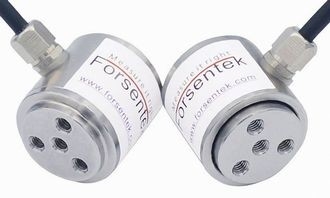

Thrust_Load_Cell_50kgThrust_Load_Cell_100kg

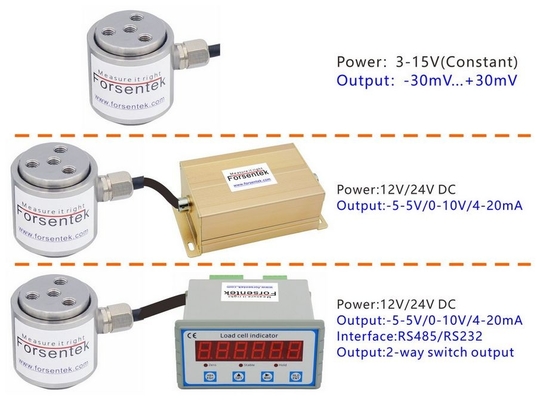

Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Flanged Thrust Transducer FFG is normally around 2.0mV/V.
Power supply of Flange Type Thrust Sensor FFG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Thrust Force Load Cell FFG is normally within 0…+30mV.
Example one: Thrust Force Transducer FFG-5kg with 2.0mV/V sensitivity powered by 10V DC,the output range is 0...+20mV.
Example two: Thrust Load Cell FFG-2kg with 2.0mV/V rated output powered by 5V DC,the output range is 0...+10mV.

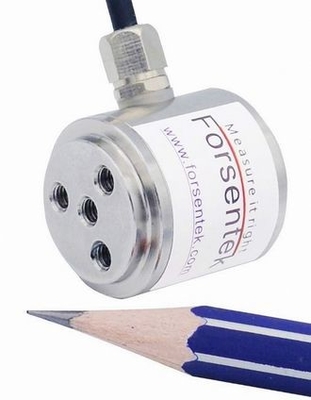

Actuator_Thrust_Measurement_50kg

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Flange Type Thrust Load Cell FFG-50kg working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-50kg thrust force VS 0-10V output, which is linear regardless of the measurement error, 0V output corresponds to “0” load, 1V output corresponds to 5kgf thrust load, 2V output corresponds to 10kgf thrust load, and so on.
Example two: Flanged Thrust Load Cell FFG-20kg working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-20kgf thrust force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 2kgf thrust load, 7.2mA output corresponds to 4kgf thrust load, and so on.
Flanged Thrust Load Cell FFG can also work with digital indicator FPT to deliver below functions:
-Display force value in real time
-Peak holding to grab the maximum force during testing
-RS485 or RS232 interface
-0-5V/0-10V/4-20mA analog output
-Switch output

Thrust Load Cell 100kg Thrust Sensor 50kg Cylinder Thrust Measurement 20kg

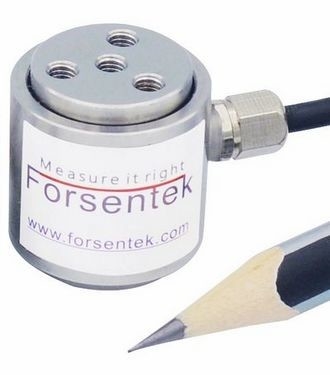

Thrust_Sensor_20kgThrust_Sensor_50kg

Click here to download datasheet
