| Type: | Flange Load Cell | Force Range: | 200N 500N 1KN 2KN 5KN 10KN 20KN |
|---|---|---|---|
| Usage: | Thrust Measurement | Load Direction: | Tension And Compression |
| Connection: | Flange To Flange | Output: | Analog Force Sensor |
| Structure: | Column Type Loadcell |
Thrust Sensor 500N Thrust Measurement 1kN Thrust Force Transducer 2kN

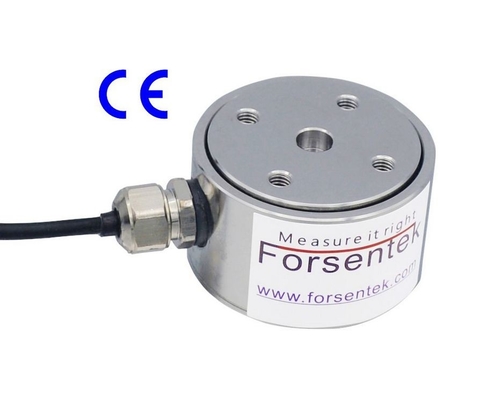

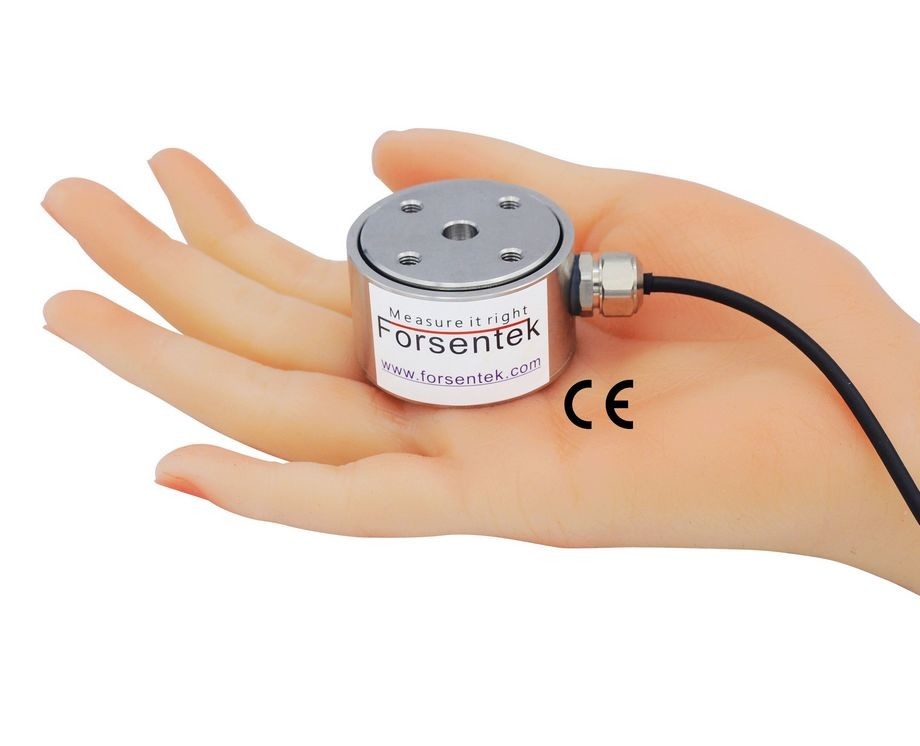

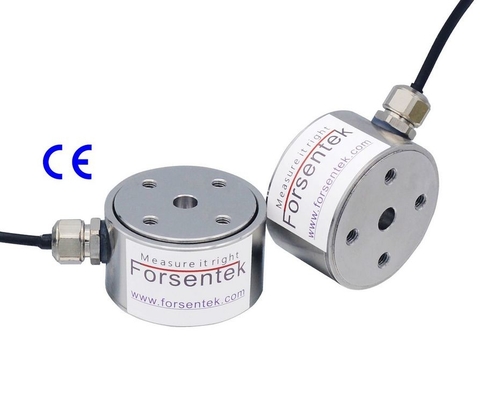

Thrust Sensor FFA is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of full scale.Traction And Compression Force Sensor FFA offers 200N / 500N / 1KN / 2KN / 5KN / 10KN / 20KN seven rated load capacities to choose from, Thrust force transducer FFA can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Flange to Flange Load Cell FFA offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, air cylinder thrust force measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification, and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.
| Ordering code | Measurement Range | Force direction |
| FFA-200N | 0-200N / 0-20kgf | Tension/compression |
| FFA-500N | 0-500N / 0-50kgf | |
| FFA-1kN | 0-1000N / 0-100kgf | |
| FFA-2kN | 0-2000N / 0-200kgf | |
| FFA-5kN | 0-5000N / 0-500kgf | |
| FFA-10kN | 0-10kN / 0-1000kgf | |
| FFA-20kN | 0-20kN / 0-2000kgf |
Specifications
| Capacity |
200N / 500N / 1kN / 2kN / 5kN / 10kN / 20kN |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% of capacity |
| Hysteresis | ±0.1% of capacity |
| Nonrepeatability | ±0.05% of capacity |
| Creep(5min) | ±0.05% of capacity |
| Safe overload | 150% of capacity |
| Ultimate overload | 200% of capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Thrust Sensor 500N Thrust Measurement 1kN Thrust Force Transducer 2kN
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force. The acting force causes deformation of the measuring element, the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge, under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Flange Type Thrust Sensor FFA is normally around 2.0mV/V.
Power supply of Flange Type Thrust Force Transducer FFA is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Flange Mounted Thrust Force Sensor FFA is normally within 0…+30mV(-30mV...+30mV for Pull And Press Force Measurement).
Example one: Flanged Thrust Force Load Cell FFA-5KN with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.
Example two: Tension Compression Load Cell FFA-500kg with 1.9mV/V rated output powered by 10V DC, the output range is -19mV...+19mV.

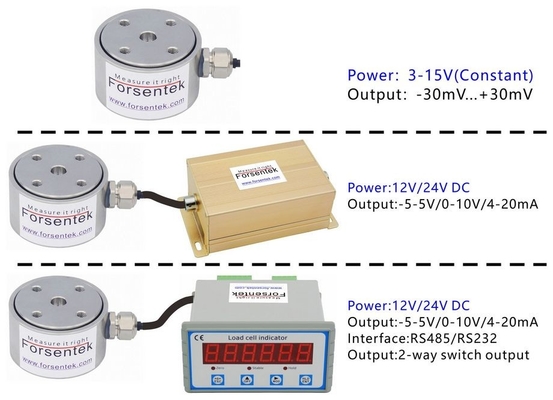

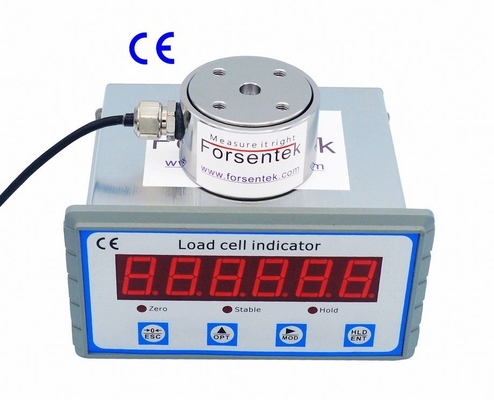

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Flange Type Thrust Force Sensor FFA-2kN working with amplifier FSC(0-10V)-24V,the Force-Voltage relationship will be 0-2KN compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 200N thrust load, 2V output corresponds to 400N thrust load, and so on.
Example two: Flange Mounted Thrust Transducer FFA-1kN working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-1000N thrust force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 100N thrust load, 12mA output corresponds to 500N thrust load, and so on.
