Miniature Compression Load Cell 1kg Pressure Force Measurement 10N

Miniature Compression Load Cell 1kg Pressure Force Measurement 10N

Miniature Compression Load Cell 1kg Pressure Force Measurement 10N
Miniature Compression Load Cell 1kg Pressure Force Measurement 10N Miniature Compression Load Cell 1kg Pressure Force Measurement 10N Miniature Compression Load Cell 1kg Pressure Force Measurement 10N Miniature Compression Load Cell 1kg Pressure Force Measurement 10N Miniature Compression Load Cell 1kg Pressure Force Measurement 10N

Large Image :  Miniature Compression Load Cell 1kg Pressure Force Measurement 10N Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FCFK
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2430pcs/month
Detailed Product Description
Type: Miniature Compression Load Cell Capacity: 1kg 2kg 5kg 10kg 20kg
Usage: Pressure Measurement Output: Analog Transducer
Structure: Column Type Force Sensor Mounting: Flange To Flange

Miniature Compression Load Cell 1kg Pressure Force Measurement 10N

Miniature Compression Load Cell 1kg is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity. Flanged Miniature Force Sensor FCFK offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg five measuring ranges to choose from, flange to flange mounting, compact design, you may find micro force transducer FCFK applicable for compression force measurement applications where mounting space is limited, such as fixture clamping force measurement, assembly force monitoring, force distribution test, force simulator, pinch force measurement, etc.. Micro Column Load Cell FCFK can also be modified or customized as per client's request.

Miniature_Compression_Load_Cell_1kgPressure_force_sensor_10N

Specifications

Capacity

1kg / 2kg / 5kg / 10kg / 20kg
10N / 20N / 50N / 100N / 200N
2.2lb / 4.4lb / 11lb / 22lb / 45lb

Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 385±50 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø2*3000mm 4-core shielded
Wiring code

Red--Excitation+   Black--Excitation-

Green--Signal+   White--Signal-

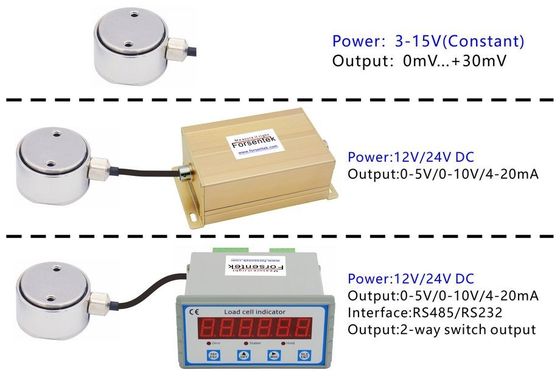

Output signal of load cell FCFK:

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Micro Clamping Load Cell FCFK is normally around 2.0mV/V.
Power supply of Pinch Force Sensor FCFK is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Clamp Force Transducer FCFK is normally within 0…+30mV.

Example one: Miniature Pinch Sensor FCFK-100N with 2.0V/V sensitivity powered by 5V DC,the output range is 0mV...+10mV.
Example two: Micro Clamping Force Transducer FCFK-20N with 2.0mV/V rated output powered by 10V DC,the output range is 0mV...+20mV.

Pressure force measurement 10N

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.

Example one: Micro Compression Force Sensor FCFK-10N working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-10N compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 1N compression load, 2V output corresponds to 2N compression load, and so on.

Example two: Miniature Compression Load Cell FCFK-1kg working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-1kg compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 0.1kg compression load, 12mA output corresponds to 0.5kg compression load, and so on.

Load cell FCFK can also work with digital indicator FPT to deliver below functions:

-Display force value in real time

-Peak holding to grab the maximum force during testing

-RS485 or RS232 interface

-0-5V/0-10V/4-20mA analog output

-Switch output

Miniature Compression Load Cell 1kg Pressure Force Measurement 10N

Miniature_Pressure_Force_Transducer_10Nminiature-pressure-force-sensor

Ordering code Measurement Range Force direction
FCFK-10N 0-10N / 0-2.2lb Compression
FCFK-20N 0-20N / 0-4.4lb
FCFK-50N 0-50N / 0-0-10lb
FCFK-100N 0-100N / 0-20lb
FCFK-200N 0-200N / 0-45lb



Click here to download datasheet
