Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor

Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor

Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor
Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor

Large Image :  Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FLH
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2090pcs/month
Detailed Product Description
Type: Rod End Load Cell Load Range: 10kN 20kN
Usage: Force Measurement Load Direction: Tensile And Compressive
Output: Analog Sensor Connection: M12 Threaded Rod

Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor

Threaded Rod End Load Cell FLH is made of 17-4 stainless steel based on strain gauge technology intended for both traction and compression force measurement. Inline type pull push load cells are designed to be mounted inline to the load axis with rugged structure for industrial applications.The Rod End Load Cell FLH can be easily mounted to existing system through M12 threaded rods located on both sides of the transducer, these metric threads can also be used to mount attachments, such as female eye bolt,bolt adapter,etc.,to fit different usage requirements. Tension Compression Sensor FLH offers 0-10kN / 0-20kN two rated measuring ranges, each sensor is integrated with a 3-meter-long 4-core shielded cable,the cable comes with a free end which makes it easy to assemble any types of connectors for electrical connection. Force Transducer FLH is normally used for press-in force measurement, cylinder thrust force measurement, auto equipment, Riveting machine pressure measurement, production line, hand press machines,etc.

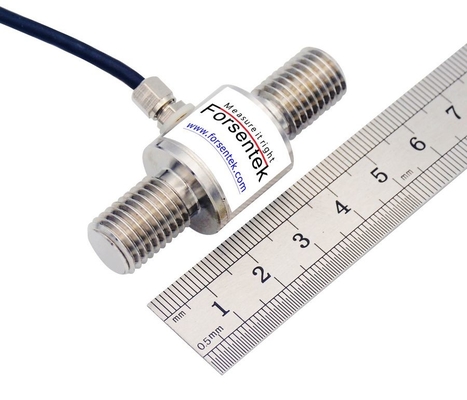

tension and compression load cell with M12 threaded rod20kN Tension and compression load cell 10kN

Ordering code Measuring Range Force direction
FLH-10kN 0-10kN / 0-2200lb

Traction

and

Compression

FLH-20kN 0-20kN / 0-4500lb

A load cell is a transducer that converts load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.Threaded Inline Load Cell FLH is designed to measure both tension and compression force,outputs millivolt signal ranging -22.5mV...+22.5mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.The applied force can be displayed through a force indicator,force indicator FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.

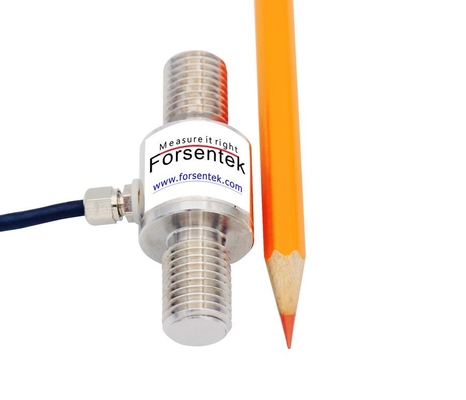

20kN Tension and compression force sensor 10kN
Specifications

Rated capacity

10kN / 1000kg / 2.2klb

20kN / 2000kg / 4.5klb

Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.3% of R.O.
Hysteresis ±0.3% of R.O.
Nonrepeatability ±0.1% of R.O.
Creep(5min) ±0.1% of R.O.
Safe overload 150% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 750±100 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection

Standard: IP50

Enhanced: IP65

Material of element Stainless steel
Cable Ø3*3000mm 4-core shielded
Wiring code Red--Excitation+    Black--Excitation-
Green--Signal+   White--Signal-

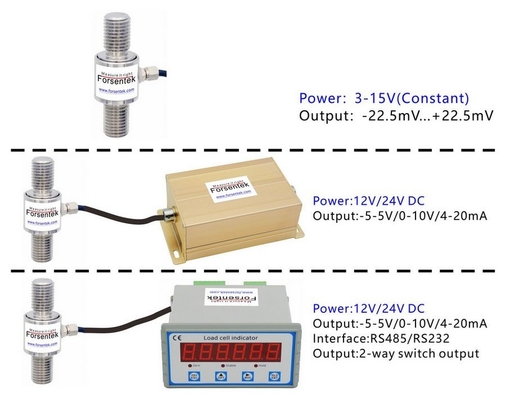

Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of M12 Threaded Inline Load Cell FLH is normally around 1.5mV/V.
Power supply of Rod End Tension Compression Load Cell FLH is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of In Line Load Cell FLH is normally within -22.5mV…+22.5mV for tensile and compressive force measurement.
Example one: Threaded In-line Load Cell FLH-20kN with 1.5mV/V sensitivity powered by 5V DC, the output range is -7.5mV...+7.5mV.
Example two: M12 Threaded Rod End Force Sensor FLH-10kN with 1.4mV/V rated output powered by 10V DC, the output range is -14mV...+14mV.

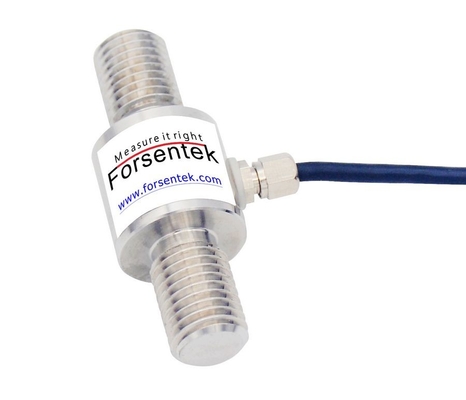

20kN Tension and compression force measurement 10kN
The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Inline Type Tension Compression Force Sensor FLH-10kN working with amplifier FSC(-10-10V)-24V, the Load-Voltage relationship will be 0-10kN compression force VS 0-10V output, 0-10kN traction force VS 0-(-10V), which is linear regardless of the measurement error, 1V output corresponds to 1kN compressive load, (-2V) output corresponds to 2kN tensile load, and so on.
Example two: Rod End Tensile Compressive Force Transducer FLH-20kN working with amplifier FSC(4-12-20mA)-24V, the Force-Current relationship will be 0-20kN compressive force VS 12-20mA output, 0-20kN tensile force VS 12-4Ma, which is linear regardless of the measurement error, 12mA output corresponds to “0” load, 12.8mA output corresponds to 2kN compression load, 8mA output corresponds to 10kN tension load, and so on.

Tensile And Compressive Load Cell 10kN Rod End Force Transducer 20kN Thrust Sensor

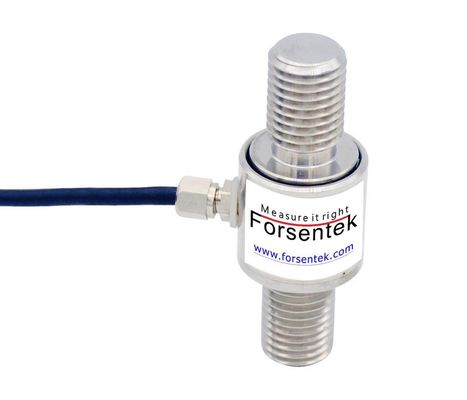

20kN Tension and compression force transducer 10kN

Click here to download datasheet
