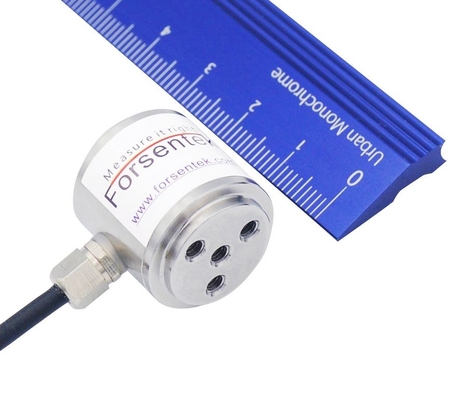

Miniature Press Load Cell 2kg 5kg 10kg 20kg 50kg 100kg 200kg Pull Push Load Cell

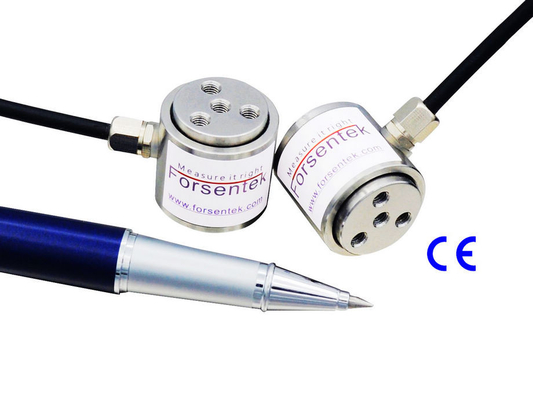

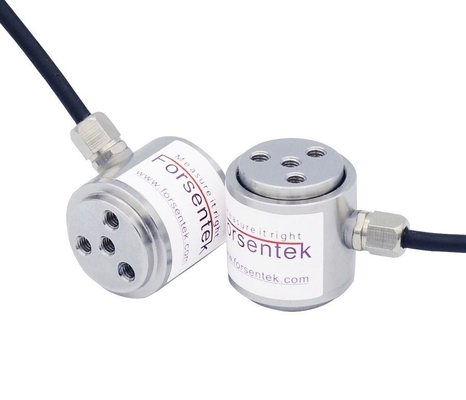

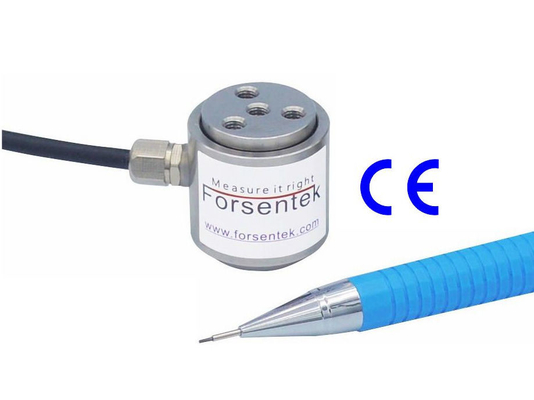

Miniature Press Load Cell FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated output. Miniature Press Force Sensor FFG offers 0-2kg / 0-5kg / 0-10kg / 0-20kg / 0-50kg / 0-100kg / 0-200kg seven rated measuring ranges to choose from, Press Force Transducer FFG can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Miniature Push Load Cell FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.
| Ordering code | Measurement Range | Force direction |
| FFG-20N | 0-20N / 0-2kgf | Tension/compression |
| FFG-50N | 0-50N / 0-5kgf | |
| FFG-100N | 0-100N / 0-10kgf | |
| FFG-200N | 0-200N / 0-20kgf | |
| FFG-500N | 0-500N / 0-50kgf | |
| FFG-1kN | 0-1000N / 0-100kgf | |
| FFG-2kN | 0-2000N / 0-200kgf |
Specifications
| Capacity |
20N / 50N / 100N / 200N / 500N / 1kN / 2kN |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of flange type press load cell FFG is around 2.0mV/V.
Power supply of miniature press force load cell FFG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of flange mounted push force transducer FFG is normally within -30mV...+30mV for tension and compression force measurement.
Example one: Press Force Sensor FFG-500N with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV(Tension and compression).
Example two: Tension And Compression Load Cell FFG-200N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV(Tension and compression).

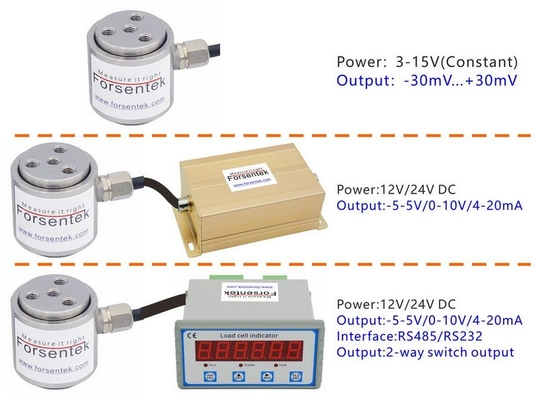

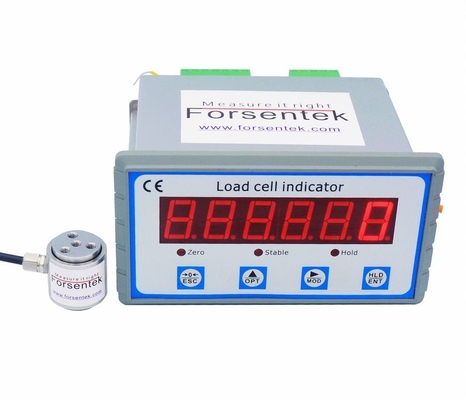

A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Press Force Load Cell FFG-500N working with -5-5V amplifier,the Force-Voltage relationship will be 0-500N compression load VS 0-5V output, 0-500N tension load VS 0-(-5V) output,when you get 3V output,it means the current load is 300N compression force,when you get -2V output,it means the current load is 200N tension force,and so on.
