Detailed Product Description
Type: Pancake Load Cell Loading Direction: Tension/Compression
Measuring Range: 0-220klb(Selectable) Thread: M16/M32/M40/M60
Output: Analog Sensor Material: Alloy Steel

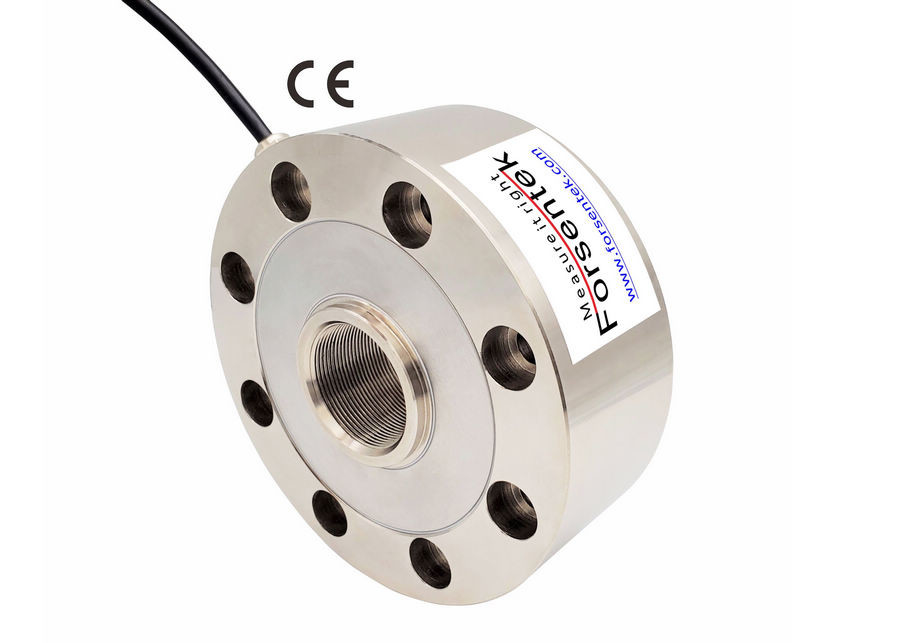

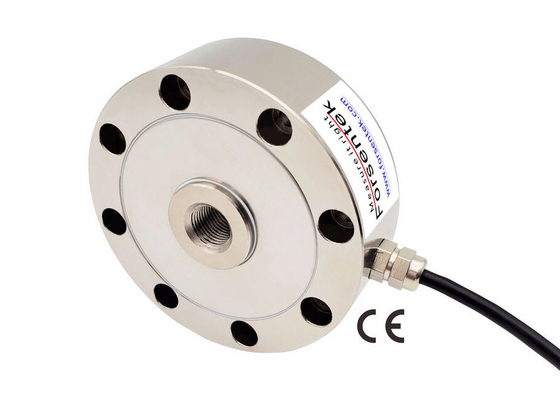

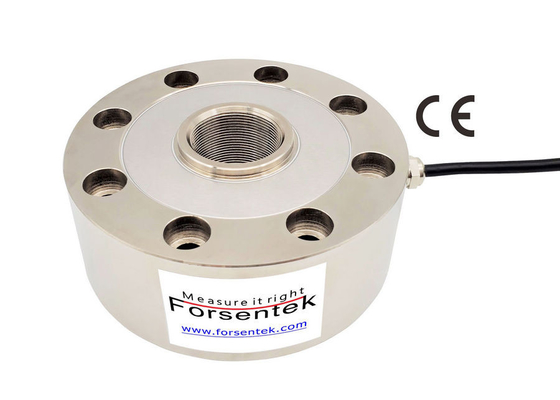

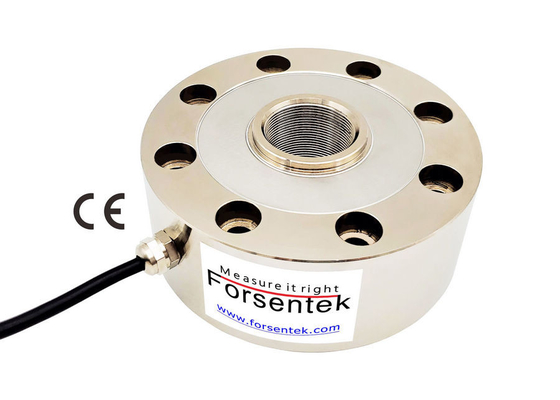

Universal Compression Load Cell 220klb 110klb 100klb 60klb 50klb Pancake Load Cell

M16/M32/M40/M60 threaded Compression Load Cell FCM is made of high stiffness alloy steel based on foil strain gauge technology to deliver 2.0mV/V rated output proportional to the applied force.Pancake load cell FCM offers 0-1.1klb / 0-2.2klb / 0-4.4klb / 0-6.6klb / 0-11klb / 0-15klb / 0-22klb / 0-44klb / 0-55klb / 0-66klb / 0-110klb / 0-132klb / 0-220klb thirteen measuring ranges to choose from. Compressive load cell FCM is suitable for both static and dynamic force measurement in tension and compression direction.Low profile structure makes it also suitable for in-line force monitoring.Pancake loadcell FCM is designed with a metric threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other adapters for force loading,this makes spoke type load cells very adaptable to various cases, you may find pancake type load cell FCM applicable for force measurement in injection-molding machines, press machines and material testing equipment, weight measurement for tanks, vessels and hoppers, and so on. Custom made service is available if you need different dimensions or capacities.

220klb pancake load cell 110klb

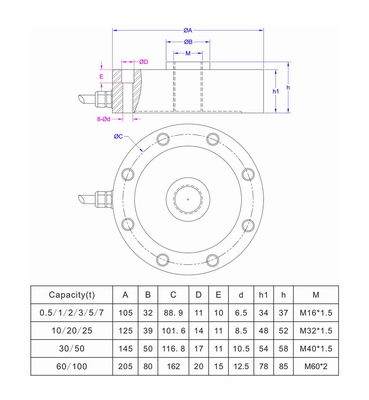

Specifications

Rated capacity

0.5ton / 5kN / 1.1klb

1 ton / 10kN / 2.2klb

2ton / 20kN / 4.4klb

3 ton / 30kN / 6.6 klb

5ton / 50kN / 11 klb

7 ton / 70kN / 15 klb

10ton/ 100kN / 22 klb

20 ton / 200kN / 44klb

25ton / 250kN / 55klbf

30 ton / 300kN / 66 klb

50ton / 500kN / 110klbf

60 ton / 600kN / 132klb

100ton / 1000kN / 220klbf

Rated output 2.0±10%mV/V
Excitation 3-15V
Zero balance ±2% of R.O.
Nonlinearity

±0.05% of R.O.

(≥30t ±0.1% R.O.)

Hysteresis

±0.05% of R.O.

(≥30t ±0.1% R.O.)

Nonrepeatability

±0.05% of R.O.

(≥30t ±0.1% R.O.)

Creep(10min) ±0.03% of R.O.
Safe overload 150% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 385±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Alloy steel
Cable Ø5*3000mm 4-wire
Wiring code Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal-


A load cell sensor is a transducer that converts a load or force acting on it into electronic signal which is proportional to the load(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.

Pancake load cell FCM outputs millivolt signal which is normally within 0-30mV,and signal amplification may be required for most applications,a load cell signal transmitter can be used to get 0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards.For example: Compression load cell FCM-10t working with 0-10V amplifier,the load-output relationship will be 0-10 ton load VS 0-10V output,when you get 5V output,it means the current load is 5ton...

Weight indicator can be used to display the measured value,load cell display FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.

Universal Pancake Load Cell 220klb 110klb 100klb 60klb 50klb Compression Force Transducer
50klb pancake load cell 100klb

Click here to download datasheet
