| Type: | Miniature Column Load Cell | Capacity: | 4.5lb 10lb 20lb 45lb 112lb 225lb 450lb |
|---|---|---|---|
| Usage: | Force Measurement | Force Direction: | Tension And Compression |
| Mounting: | Flange To Flange | Output: | Analog Transducer |
Flange Compression Load Cell 4.5lb 10lb 20lb 45lb 112lb 225lb 450lb Compression Force Transducer

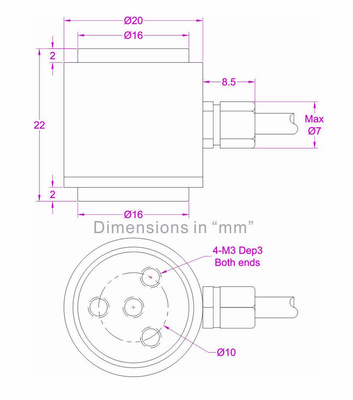

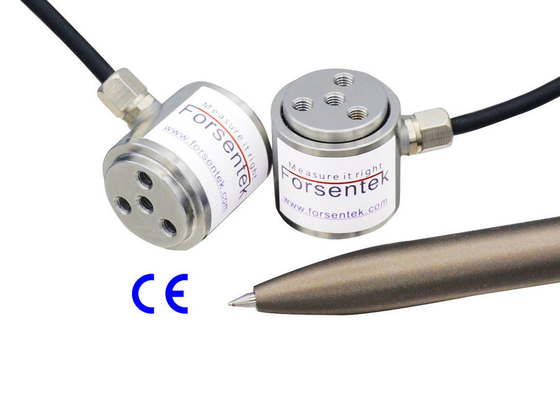

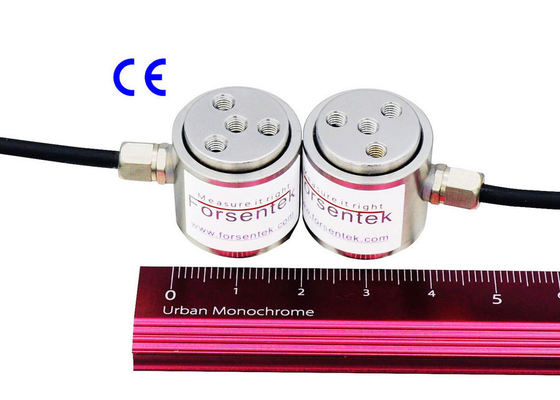

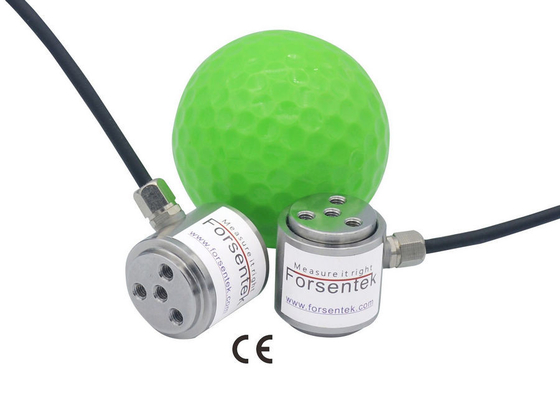

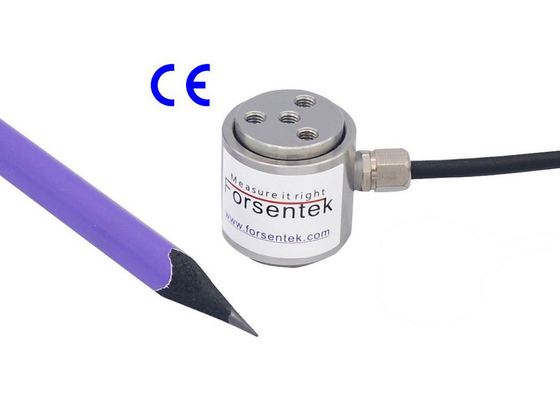

Miniature Flange Type Compression Load Cell FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated output.Miniature flange force sensor FFG offers 0-4.5lb / 0-11lb / 0-22lb / 0-45lb / 0-112lb / 0-225lb / 0-450lb seven rated measuring ranges to choose from, Compression Force Transducer FFG can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Miniature Column Load Cell FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.
| Ordering code | Measurement Range | Force direction |
| FFG-20N | 0-20N / 0-2kgf | Tension/compression |
| FFG-50N | 0-50N / 0-5kgf | |
| FFG-100N | 0-100N / 0-10kgf | |
| FFG-200N | 0-200N / 0-20kgf | |
| FFG-500N | 0-500N / 0-50kgf | |
| FFG-1kN | 0-1000N / 0-100kgf | |
| FFG-2kN | 0-2000N / 0-200kgf |
Specifications
| Capacity |
2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg 20N / 50N / 100N / 200N / 500N / 1kN / 2kN |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of flange type cylindrical load cell FFG is around 2.0mV/V.
Power supply of flanged column load cell FFG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of flange mounted load cell FFG is normally within 0-30mV(-30mV...+30mV for tension and compression force measurement).
Example one: Flange Load Cell FFG-500N with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV(Tension and compression).
Example two: Tension Compression Load Cell FFG-200N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV(Tension and compression).
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Miniature Flange Force Transducer FFG-1kN working with -10-10V amplifier,the Force-Voltage relationship will be 0-1000N compression load VS 0-10V output, 0-1000N tension load VS 0-(-10V) output,which is linear regardless of the measurement error.
