|Type:||Miniature Cylindrical Load Cell||Usage:||Force Measurement|
|Capacity:||2kg 5kg 10kg 20kg 50kg 100kg 200kg||Force Direction:||Tension And Compression|
|Mounting:||Flange To Flange||Output:||Analog Sensor|
Cylindrical Compression Load Cell 5kg Miniature Column Compression Load Cell 10kg

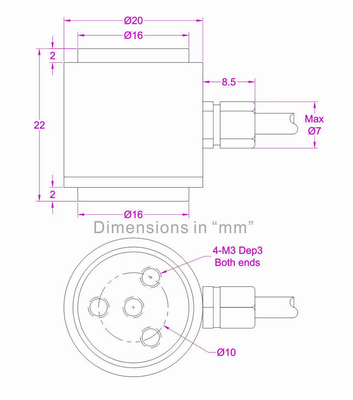

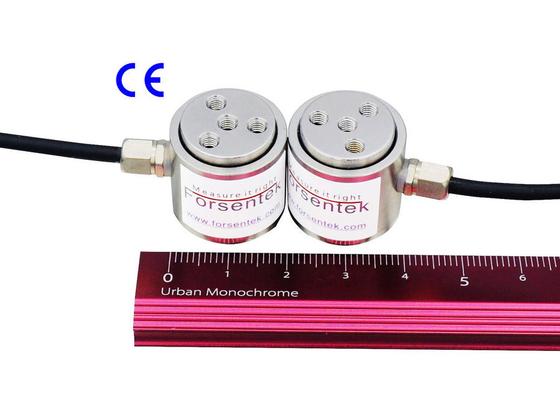

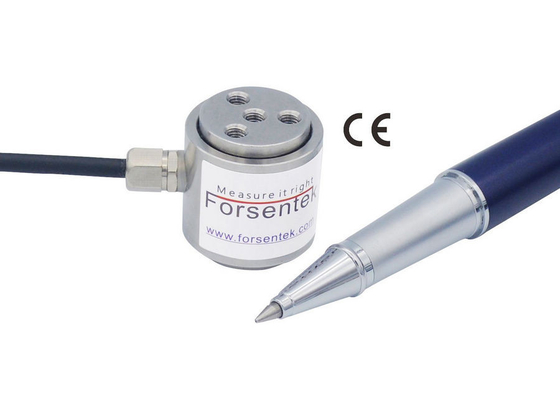

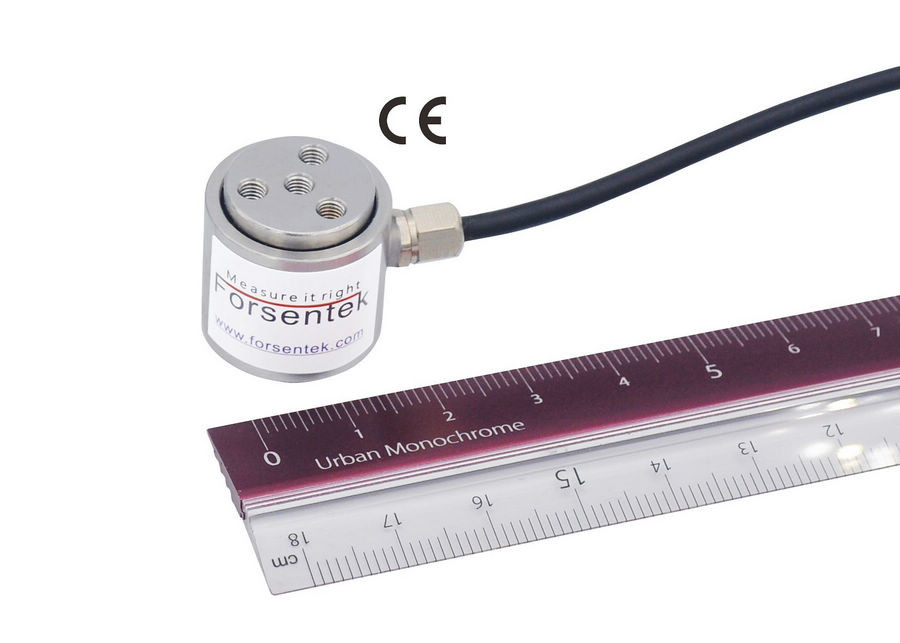

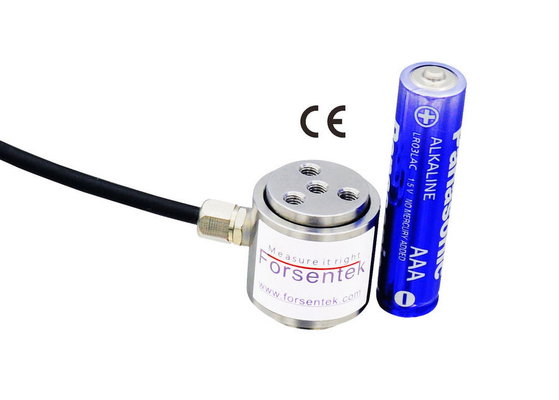

Miniature Cylindrical Load Cell FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated output.Miniature flange force sensor FFG offers 0-2kg / 0-5kg / 0-10kg / 0-20kg / 0-50kg / 0-100kg / 0-200kg seven rated measuring ranges to choose from, Compression Force Transducer FFG can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Miniature Column Load Cell FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.
|Ordering code||Measurement Range||Force direction|
|FFG-20N||0-20N / 0-2kgf||Tension/compression|
|FFG-50N||0-50N / 0-5kgf|
|FFG-100N||0-100N / 0-10kgf|
|FFG-200N||0-200N / 0-20kgf|
|FFG-500N||0-500N / 0-50kgf|
|FFG-1kN||0-1000N / 0-100kgf|
|FFG-2kN||0-2000N / 0-200kgf|
4.4lb / 10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf
2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg
20N / 50N / 100N / 200N / 500N / 1kN / 2kN
|Rated output||2.0 mV/V|
|Safe overload||150% F.S.|
|Ultimate overload||200% F.S.|
|Temperature shift zero||±0.02% R.O./oC|
|Temperature shift span||±0.02% R.O./oC|
|Input resistance||350±30 ohms|
|Output resistance||350±5 ohms|
|Insulation resistance||>2000M ohms|
|Material of element||Stainless steel|
|Cable||Ø3*3000mm 4-core shielded|
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
LOutput signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Flanged Force Transducer FFG is normally around 2.0mV/V.
Power supply of Flange Type Force Sensor FFG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Traction/Compression Force Sensor FFG is normally within -30mV…+30mV.
Example one: Tensile Compressive Force Transducer FFG-50N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
Example two: Tension And Compression Load Cell FFG-20N with 2.0mV/V rated output powered by 5V DC,the output range is -10mV...+10mV.
The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Flange Type Tension Compression Sensor FFG-200N working with amplifier FSC(-10-10V)-24V,the Load-Voltage relationship will be 0-200N compression force VS 0-10V output, 0-200N tensile force VS 0-(-10V) output, which is linear regardless of the measurement error, 1V output corresponds to 20N compressive load, (-2V) output corresponds to 40N tension load, and so on.
Example two: Cylindrical Tension and Compression Load Cell FFG-200N working with amplifier FSC(4-12-20mA)-24V,the Force-Current relationship will be 0-200N compression force VS 12-20mA output, 0-200N tension force VS 12-4mA, which is linear regardless of the measurement error, 12mA output corresponds to “0” load, 12.8mA output corresponds to 20N compressive load, 8mA output corresponds to 200N tensile load, and so on.
