| Usage: | Compression Force Measurement | Type: | Cylindrical Compression Load Cell |
|---|---|---|---|
| Mounting: | Flange-to-Flange | Output: | Analog Sensor |
| Capacity: | 20kg 50kg 100kg 200kg 500kg 1t 2t |

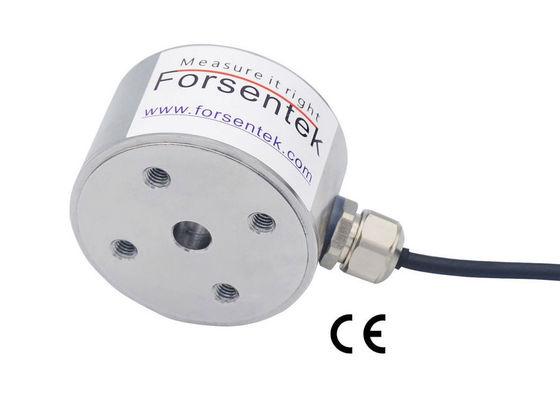

Flange Mounted Compression Load Cell 50kg Cylindrical Compression Type Load Cell 100kg
Flange-to-Flange Compression Load Cell FFA is made of stainless steel utilizing strain gauge technology to deliver mV/V output with maximum 0.1% non-linearity of the full scale.Tension Compression Force Sensor FFA offers 0-20kg / 0-50kg / 0-100kg / 0-200kg / 0-500kg / 0-1000kg / 0-2000kg seven rated measuring ranges to choose from, flange type force transducer FFA can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Cylindrical Load Cell FFA offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.
Dimensions(Unit in "mm")
| Ordering code | Measurement Range | Force direction |
| FFA-200N | 0-200N / 0-20kg | Tension/compression |
| FFA-500N | 0-500N / 0-50kg | |
| FFA-1kN | 0-1000N / 0-100kg | |
| FFA-2kN | 0-2000N / 0-200kg | |
| FFA-5kN | 0-5000N / 0-500kg | |
| FFA-10kN | 0-10kN / 0-1000kg | |
| FFA-20kN | 0-20kN / 0-2000kg |
Specifications
| Capacity |
200N / 20kg / 44 lbf 2000N / 200kg / 440 lb 20kN / 2000kg / 4.4 klb |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% of full capacity |
| Hysteresis | ±0.1% of full capacity |
| Nonrepeatability | ±0.05% of full capacity |
| Creep(5min) | ±0.05% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
The output signal from the wheatstone bridge is normally within -30mV...+30mV. A load cell amplifier can be used to deliver -5~5V, 0-10V or 4-20mA output. Example: Cylindrical compression load cell FFA-100kg working with -10-10V amplifier,the Force-Voltage relationship will be 0-100kg compression load VS 0-10V output, 0-100kg tension load VS 0-(-10V) output which is linear. When you get 5V output,it means the current load is 50kg compression force,when you get -3V output,it means the current load is 30kg tension load,and so on.
