Usage: Compression Force Measurement Type: Miniature Button Load Cell
Output: Analog Sensor Capacity: 10 Lb 20lb 40 Lb 100lb
Theory: Strain Gauge Load Cell Sensor Diameter: 8mm

Micro Button Load Cell 10lb 20 lb 40lb 100 lb Smallest Compression Force Transducer

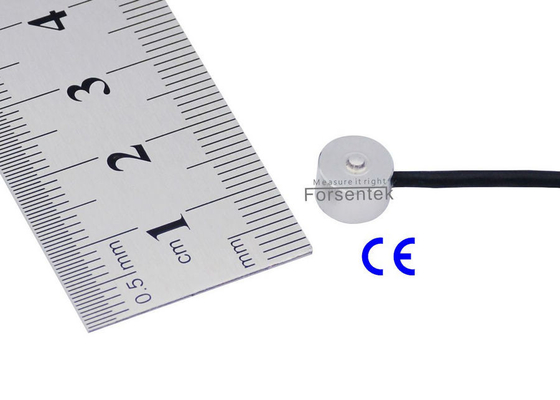

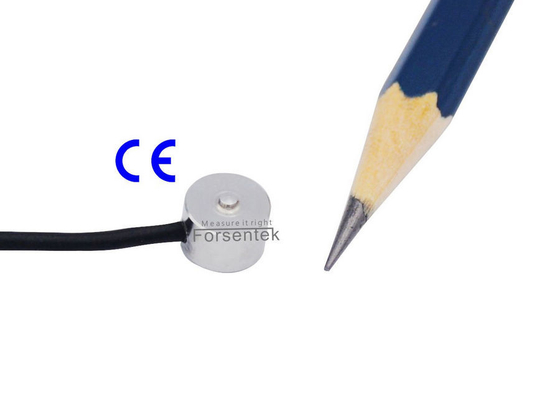

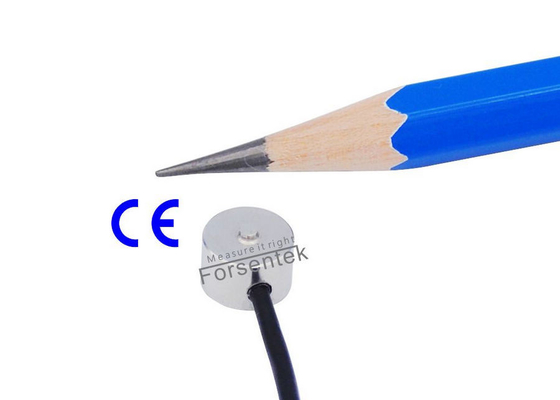

Smallest Compression Load Cell FC8E is made of stainless steel based on metal foil stain gauge technology intended for compression force measurement. 1000 ohms high resistance strain gauge delivers better stability compared to commonly used 350ohms gauges, miniature load cell FC8E offers 0-11lb / 0-22lb / 0-44lb / 0-110lb four measuring ranges to choose from.Smallest button load cell FC8E is featured with only 8mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications with limited mounting space.Typical applications for Micro Compression Sensor FC8E are such as clamping force measuremen, force overload protection, load distribution analysis, pressing die force measurement, auto equipment, assembly line and so on.
smallest compression load cell 10 lb 20lb 50lb 100lb

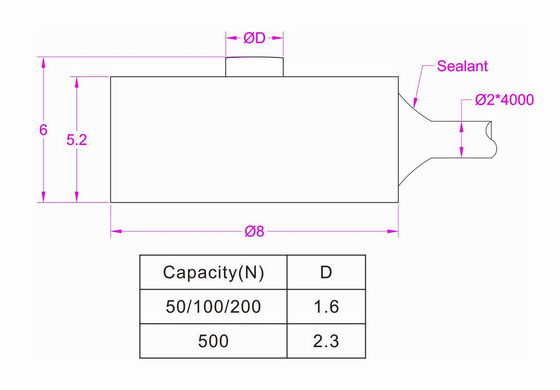

Dimensions(unit in milimeter)
smallest compression sensor 10 lb 20lb 50lb 100lb

Ordering code Measurement Range Force direction
FC8E-50N 0-50N / 0-11 lbf Compression
FC8E-100N 0-100N / 0-22 lbf
FC8E-200N 0-200N / 0-44 lbf
FC8E-500N 0-500N / 0-110 lbf

Specifications

Capacity

50N / 5kg / 11 lb

100N / 10kg / 22 lbf

200N / 20kg / 44lbf

500N / 50kg / 110lb

Rated output 1.0 mV/V
Excitation 3-8V
Zero balance ±0.1mV/V
Nonlinearity ±1% R.O.
Hysteresis ±1% R.O.
Nonrepeatability ±0.5% R.O.
Creep(5min) ±0.2% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance 900±100 ohms
Output resistance 900±100 ohms
Insulation resistance >2000M ohms
Ingress protection IP64
Material of element Stainless steel
Cable Ø2*4000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-


A Load Cell is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell which is normally within 0...+10mV for model FC8E. A signal conditioner can be used to convert mV signal into 0-5V / 0-10V / 4-20mA output, taking FC8E-500N working with amplifier FSC(0-5V)-24V for example, the force-voltage relationship will be 0-500N load VS 0-5V voltage, 1V corresponds to 100N load, 2V voltage corresponds to 200N force,and so on.

Miniature Compression Force Transducer 10lb 20 lb 40lb 100 lb Smallest Compression Force Sensor
smallest compression force sensor 10lb 20 lb 50 lb 100lb

Click here to download datasheet
