Hollow flange torque sensor 3000NM 2000NM 1000NM 500NM 300NM 200NM 100NM

Hollow flange torque sensor 3000NM 2000NM 1000NM 500NM 300NM 200NM 100NM

Hollow flange torque sensor 3000NM 2000NM 1000NM 500NM 300NM 200NM 100NM
Hollow flange torque sensor 3000NM 2000NM 1000NM 500NM 300NM 200NM 100NM Hollow flange torque sensor 3000NM 2000NM 1000NM 500NM 300NM 200NM 100NM Hollow flange torque sensor 3000NM 2000NM 1000NM 500NM 300NM 200NM 100NM

Large Image :  Hollow flange torque sensor 3000NM 2000NM 1000NM 500NM 300NM 200NM 100NM Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FTN
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1pc/box
Delivery Time: 3-4 weeks
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 5000pcs/month
Detailed Product Description
Usage: Torque Measurement Theory: Strain Gauge Torque Sensor
Output: Analog Sensor Capacity: 100/200/300/500/1000/2000/3000NM

Hollow flange torque sensor 3000NM 2000NM 1000NM 500NM 300NM 200NM 100NM

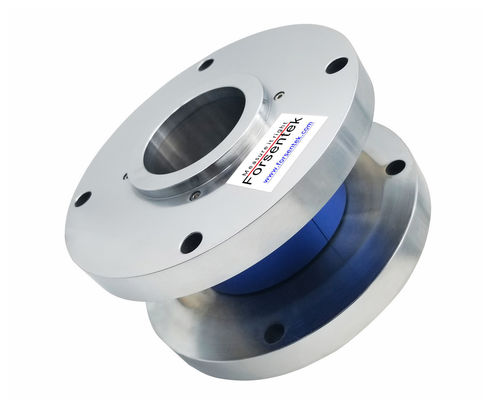

Hollow flange reaction type torque transducer FTN is made of alloy steel based on strain gauge technology.A wheatstone full bridge is bonded on a special-machined elastic body to deliver mV/V output with maximum 0.25% non-linearity over a wide dynamic range.Reaction torque sensor FTN offers 0-100NM / 0-200NM / 0-300NM / 0-500NM / 0-1000NM / 0-2000NM / 0-3000NM seven measuring ranges to choose from.Flange to flange mounting with a 60mm hole goes through the center of the transducer which makes FTN applicable for both non-rotating and rotating torque measurement. Typical applications of torque meter FTN are for example servo motor torque measurement, test bench applications, fatigue testing, tightening torque control, twist measurement, motor dynamometers, actuator test and so on.

reaction_type_torque_meter

Dimensions

Hollow flange torque sensor 3000NM 2000NM 1000NM 500NM 300NM 200NM 100NM
Parameters

Rated capacity

100NM / 885 lbf-in

200NM / 1770 lbf*in

300NM / 2655 lb-in

500NM / 4425 lbf-in

1000NM / 8850 lbf-in

2000NM / 17700 lb*in

3000NM / 26550 lb-in

Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Non-linearity ±0.25% F.S.
Hysteresis ±0.25% F.S.
Non-repeatability ±0.2% F.S.
Creep(10min) ±0.1% F.S.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% F.S./oC
Temp. shift span ±0.02% F.S./oC
Input resistance 750±100 ohms
Output resistance 700±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Alloy  steel
Cable Ø5*3000mm 4-core shielded cable
Wiring code

Red--Exc+ Black--Exc-

Green--Sig+ White--Sig-



A torque sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of FTN is normally within -20mV...+20mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.

hollow_flange_reaction_type_torque_transducer

hollow_flange_torque_sensor_datasheet
