Miniature Reaction Torque Sensor 0-100Nm Flange to Flange Static Torque Transducer

Miniature Reaction Torque Sensor 0-100Nm Flange to Flange Static Torque Transducer

Miniature Reaction Torque Sensor 0-100Nm Flange to Flange Static Torque Transducer
Miniature Reaction Torque Sensor 0-100Nm Flange to Flange Static Torque Transducer Miniature Reaction Torque Sensor 0-100Nm Flange to Flange Static Torque Transducer Miniature Reaction Torque Sensor 0-100Nm Flange to Flange Static Torque Transducer Miniature Reaction Torque Sensor 0-100Nm Flange to Flange Static Torque Transducer

Large Image :  Miniature Reaction Torque Sensor 0-100Nm Flange to Flange Static Torque Transducer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FTE
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2590pcs/month
Detailed Product Description
Usage: Torque Measurement Style: Micro Flange Torque Sensor
Output: Analog Sensor Mounting: Flange To Flange
Type: Stationary Torque Transducer

Miniature Reaction Torque Sensor 0-100Nm Flange to Flange Static Torque Transducer

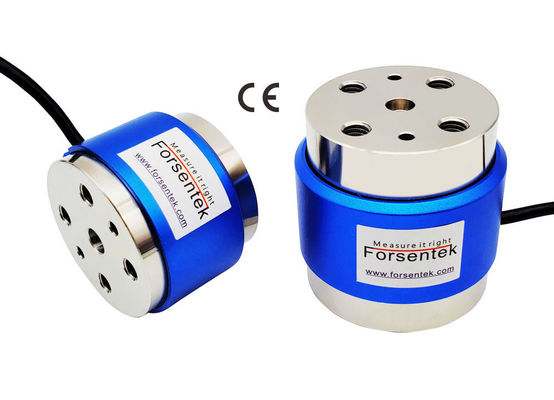

Miniature Reaction Torque Transducer FTE is strain gauge based intended for reaction torque measurement in both clockwise and anticlockwise direction.Torque sensor FTE offers 0.1NM / 0.2NM / 0.5NM / 1NM / 2NM / 3NM / 5NM / 10NM / 20NM / 30NM / 50NM / 100NM twelve rated capacities to choose from,high accracy with maximum 0.2% non-linearity of the full scale. End flanges located on both sides of the torque transducer can be used for bolting between shaft or mounting plates,very compact size makes torque cell FTE suitable for torque measurement where mounting space is limited.Miniature Torque Sensor FTE can be modified or customized as per client's request to meet requirements of different applications.

miniature reaction torque transducer

Dimensions(unit in "mm")

interface reaction torque transducer MRT

Specifications

Capacity

0.1N*m / 0.88 lbf-in / 1kg*cm

0.2Nm / 1.77 lbf-in / 2kgf*cm

0.5NM / 4.4 lbf*in / 5kgf-cm

1Nm / 8.8 lb-in / 10 kg-cm

2N*m / 17.7 lbf*in / 20kg-cm

3N-m / 26.5 lbf-in / 30 kg*cm

5N*m / 44 lbf-in / 50kgf*cm

10Nm / 88 lb*in / 1 kgf*m

20Nm / 177 lb-in / 2kg*m

30N-m / 265 lbf-in / 3 kgf-m

50N*m / 442 lbf*in / 5kg*m

100Nm / 885 lb*in / 10kgf*m

Rated output 1.0mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.02% R.O./oC
Input resistance 700ohms
Output resistance 700ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Aluminum alloy
Cable Ø3*3000mm 4-core shielded
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Miniature torque sensor FTE is designed to measure non-rotating torque which is also known as reaction torque.Micro torque transducer FTE utilizes strain gauge technology to deliver mV/V output proportional to the applied torque, working with signal conditioner can get ±5V,±10V,0-5V,0-10V or 4-20mA output.i.e. FTE-100Nm working with FSC(-10-10V)-24V, the torque-voltage relationship will be 0-100N*m torque in clockwise direction VS 0-10V output, 0-100Nm torque in anticlockwise direction VS 0-(-10V) output. Flange torque sensor FTE can also work with digital indicator FPT to display the torque value in real time,the display unit supports RS485/RS232 interface and 0-5V/0-10V/4-20mA analog output.

miniature reaction torque meter

Click here to download datasheet
