| Type: | Anglog | Output: | 0-5V/0-10V/4-20mA |
|---|---|---|---|
| Capacity: | 10kg 20kg 30kg 50kg 60kg 100kg |

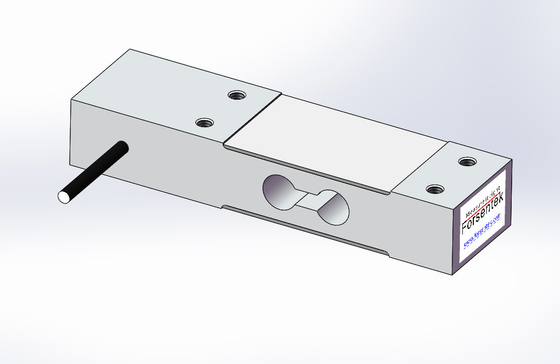

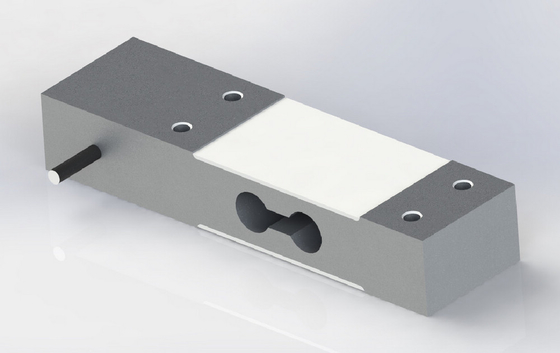

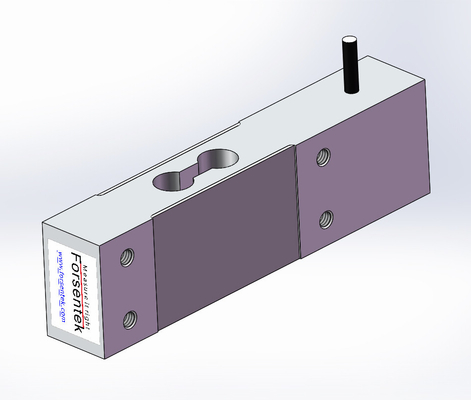

10kg 20kg 50kg 100kg load cell with amplifier for 0-5V 0-10V 4-20mA output
Weighing load cell transducer with amplifier delivers 0-5V / 0-10V / 4-20mA output directly from the weight sensor .Load transducer FAHE offers 10kg / 20kg / 30kg / 50kg / 60kg / 100kg six measuring ranges to choose from. Compared to traditional external signal amplifier,load cell with amplifier inside the sensor has many advantages such as: Easier wiring, compact size and lower cost.The rectangular shape and low profile design of the amplifier board makes it compatible with most beam type load cells in the market,if you are looking for off center weighing load cell with amplified signal output,contact us for a customized solution.

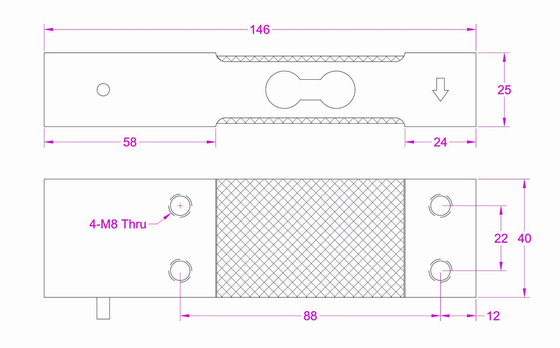

Dimensions(in "mm")
Specifications
| Capacity |
10kg 20kg 30kg 50kg 60kg 100kg |
| Rated output | 0-5V/0-10V/4-20mA |
| Excitation | 12V/24V DC |
| Zero balance | ±5% R.O. |
| Nonlinearity | ±0.15% R.O. |
| Hysteresis | ±0.15% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(3min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Aluminum alloy |
| Cable | Ø5*1000mm |
| Wiring code |
3-wire for voltage output 2-wire for current output |
10kg 20kg 50kg 100kg load cell with amplifier for 0-5V 0-10V 4-20mA output
