| Usage: | Weight Measurement | Type: | Smallest Load Sensor |
|---|---|---|---|
| Output: | Analog | Capacity: | 2kg 3kg 5kg 10kg |
| Feature: | Miniature Size,lightweight |
Smallest Load Cell 2kg 3kg 5kg 10kg Smallest Beam Type Weight Sensor

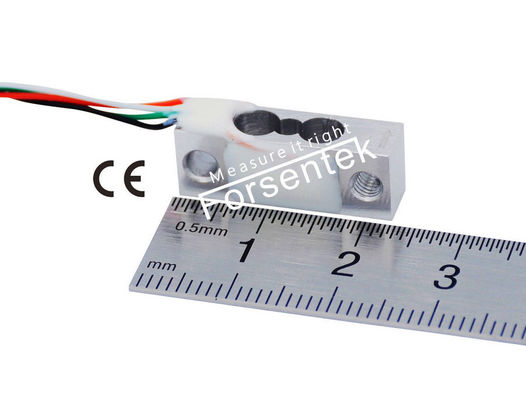

Smallest Weight Sensor FMZC is strain gauge based to deliver 1.0mV/V output from full wheatstone bridge. Small load sensor FMZC offers 2kg / 3kg / 5kg / 0-10kg four rated capacities to choose from,high accuracy with maximum 0.1% non-linearity of the full capacity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to commonly used 350 ohms gauges. The compact size (L*W*H=22*8*5mm) and aluminum material makes FMZC weighs only about 2.2 grams which makes it suitable for weight measuring applications where total mass and mounting space matters. Micro Loadcell FMZC offers a perfect mixture of small size,high accuracy and low cost,which makes weight sensor FMZC suitable for weight monitoring in consumer electronics.You may find Smallest Loadcell FMZC applicable for home appliances, force simulators, process control, robotics, automotive and so on.Forsentek is also capable of and willing to provide custom made service if you cannot find suitable weight/load/force measurement sensors from the standard product portfolio.
Dimensions:
Specifications
| Rated capacity |
2kg / 20N / 4.4 lbf 3kg / 30N / 6.6 lbf 5kg / 50N / 11 lbf 10kg / 100N / 22lb |
| Rated output | 1.0 mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of R.O. |
| Hysteresis | ±0.1% of R.O. |
| Nonrepeatability | ±0.05% of R.O. |
| Creep(2min) | ±0.05% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.05% of R.O./oC |
| Temperature shift span | ±0.05% of R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum |
| Cable | 32AWG*90mm |
| Wiring code | Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
Brief instruction of load cell rated output(or Sensitivity) and output range:
Definition of rated output: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Loadcell output = (Power supply * Rated output) * Load / Capacity
Rated output of loadcell FMZC is around 1mV/V.
Power supply is normally within 3-10V.
Load / Capacity is within 0-1.
So the output signal of Load Transducer FMZC is normally within 0-10mV.
Example one: Smallest Load Cell Sensor FMZC-2kg with 1.0mV/V sensitivity powered by 3.3V DC,the output range is 0~3.3mV.
Example two: Smallest Weight Sensor FMZC-5kg with 1.0mV/V sensitivity powered by 10V DC,the output range is 0~10mV.
Smallest Weight Transducer 2kg 3kg 5kg 10kg Smallest Beam Type Load Cell
