| Usage: | Force Measurement | Theory: | Miniature Force Transducer |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 20N 50N 100N 200N 500N 1000N 2000N |
| Force Direction: | Tension And Compression | Mounting: | Flange-to-flange |

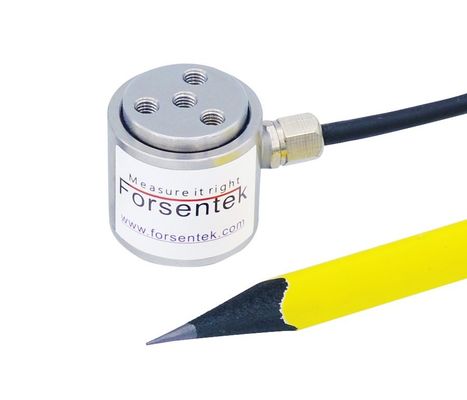

Miniature Force Sensor 2000N 1000N 500N 200N 100N 50N 20N Flange Load Cell
Miniature Force Sensor FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated output.Miniature force sensor FFG has 20N / 50N / 100N / 200N / 500N / 1000N / 2000N seven rated capacities to choose from,this model is suitable for both tension tension and compression force measurement.Stainless steel construction, flange-to-flange mounting, compact size, bidirectional force measurement, high accuracy, competitive price, miniature force sensor FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.
Specifications
| Capacity |
4.4lb / 10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf 2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg 20N / 50N / 100N / 200N / 500N / 1kN / 2kN |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Miniature Force Sensor 2000N 1000N 500N 200N 100N 50N 20N Flange Load Cell
Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Flanged Force Transducer FFG is normally around 2.0mV/V.
Power supply of Flange Type Force Sensor FFG is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Traction/Compression Force Sensor FFG is normally within -30mV…+30mV.
Example one: Tensile Compressive Force Transducer FFG-50N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
Example two: Tension And Compression Load Cell FFG-20N with 2.0mV/V rated output powered by 5V DC,the output range is -10mV...+10mV.
The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Flange Type Tension Compression Sensor FFG-100N working with amplifier FSC(-10-10V)-24V,the Load-Voltage relationship will be 0-100N compression force VS 0-10V output, 0-100N tensile force VS 0-(-10V) output, which is linear regardless of the measurement error, 1V output corresponds to 10N compressive load, (-2V) output corresponds to 20N tension load, and so on.
Example two: Cylindrical Tension and Compression Load Cell FFG-1kN working with amplifier FSC(4-12-20mA)-24V,the Force-Current relationship will be 0-1kN compression force VS 12-20mA output, 0-1kN tension force VS 12-4mA, which is linear regardless of the measurement error, 12mA output corresponds to “0” load, 12.8mA output corresponds to 100N compressive load, 8mA output corresponds to 500N tensile load, and so on.
Dimensions(Unit in "mm")
| Ordering code | Measurement Range | Force direction |
| FFG-20N | 0-20N / 0-2kgf | Tension/compression |
| FFG-50N | 0-50N / 0-5kgf | |
| FFG-100N | 0-100N / 0-10kgf | |
| FFG-200N | 0-200N / 0-20kgf | |
| FFG-500N | 0-500N / 0-50kgf | |
| FFG-1kN | 0-1000N / 0-100kgf | |
| FFG-2kN | 0-2000N / 0-200kgf |
