100 in-lb torque sensor 100 lb-in torque transducer 10 NM torque meter

100 in-lb torque sensor 100 lb-in torque transducer 10 NM torque meter
100 in-lb torque sensor 100 lb-in torque transducer 10 NM torque meter 100 in-lb torque sensor 100 lb-in torque transducer 10 NM torque meter 100 in-lb torque sensor 100 lb-in torque transducer 10 NM torque meter 100 in-lb torque sensor 100 lb-in torque transducer 10 NM torque meter 100 in-lb torque sensor 100 lb-in torque transducer 10 NM torque meter

Large Image :  100 in-lb torque sensor 100 lb-in torque transducer 10 NM torque meter Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FTA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Usage: Torque Measurement Sensor Theory: Strain Gauge Torque Sensors
Output: Analog Sensor Capacity: 0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM

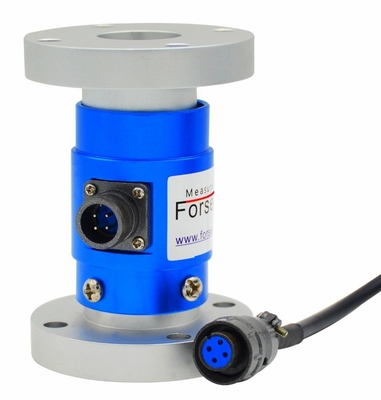

100 in-lb torque sensor 100 lb-in torque transducer 10 NM

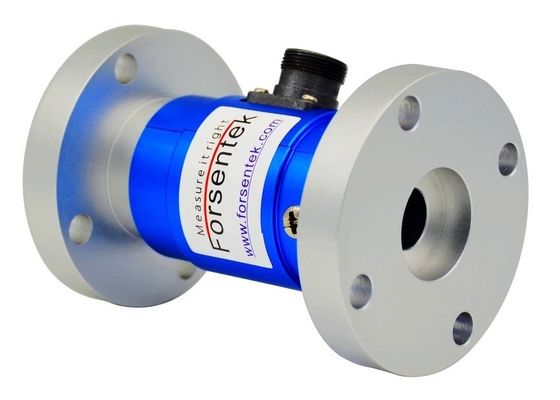

100 in-lb torque sensor 200 lb-in
Features

  • Aluminum construction,strain gauge technology
  • Flange to flange mounting
  • Analog output,high accuracy
  • Reaction torque measurement
  • Customizable

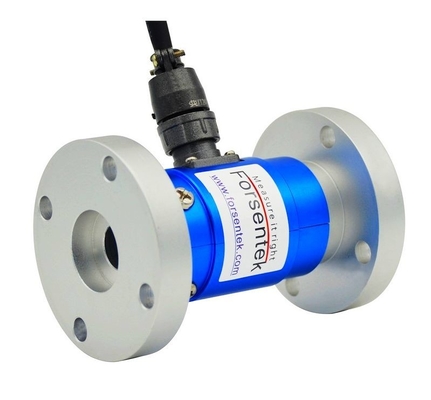

200 in-lb torque sensor 100 lb-in
Specifications

Capacity

0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM
20NM 30NM 50NM 100NM
Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Non-linearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Non-repeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.01% R.O./oC
Input resistance 350(700) ohms
Output resistance 350(700) ohms
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element

<50NM Aluminum alloy

>30NM Alloy steel
Cable

Ø5*3000mm 4-core shielded cable

with mating connector
Wiring code

Clockwise
Red--E+ Black--E- Green--S+ White--S-


Flange style reaction torque sensor FTA

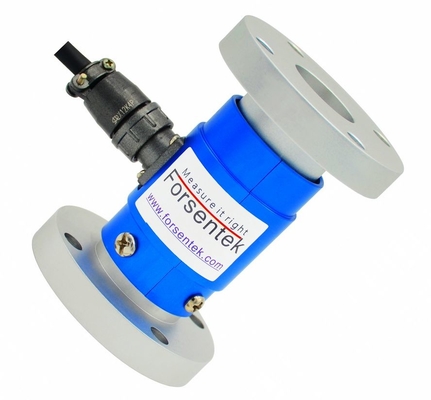

30 nm torque sensor 300 lb-in

Reaction torque transducer FTA is designed with flange on both ends for easy installation,strain gauge based,high accuracy,5-point test report for both clockwise and counterclockwise direction is provided to guarantee the sensor s meet the declared performance.Custom design service is available if you cannot find a suitable model to fit your application well.

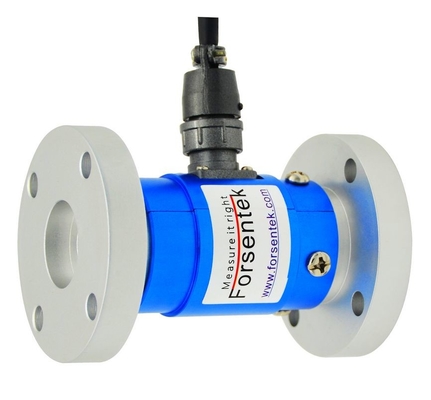

10 in-lb torque sensor 20 lb-in
torque sensor


Dimensions(Unit in "mm")
torque transducer 10NM 5NM 2NM 1NM 0.5NM
datasheet of torque sensor
