5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb

5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb
5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb 5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb 5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb 5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb 5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb 5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb 5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb

Large Image :  5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FTA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Usage: Torque Measurement Sensor Theory: Strain Gauge Torque Sensors
Output: Analog Sensor Capacity: 0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM

5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb

5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb
Features

  • Aluminum construction,strain gauge technology
  • Flange to flange mounting
  • Analog output,high accuracy
  • Reaction torque measurement
  • Customizable

5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb
Specifications

Capacity

0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM
20NM 30NM 50NM 100NM

Rated output1.5 mV/V
Excitation3-15V
Zero balance±2% R.O.
Nonlinearity±0.2% R.O.
Hysteresis±0.2% R.O.
Nonrepeatability±0.1% R.O.
Creep(10min)±0.1% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temp.-10...+40oC
Operating temp.-20...+60oC
Temp. shift zero±0.02% R.O./oC
Temp. shift span±0.01% R.O./oC
Input resistance350(700) ohms
Output resistance350(700) ohms
Insulation resistance>2000M ohms
Ingress protectionIP60
Material of element

<50NM Aluminum alloy

>30NM Alloy steel

CableØ5.5*3000mm
Wiring code

Clockwise
Red--E+ Black--E- Green--S+ White--S-

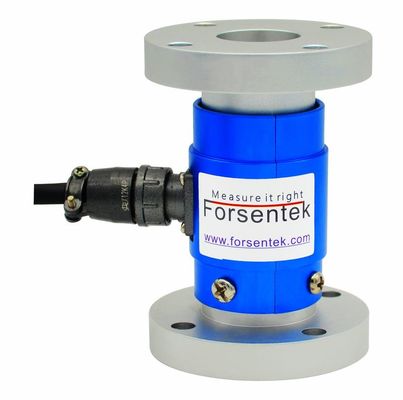

Flange to flange reaction torque sensor FTA
5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb

Reaction torque transducer FTA is designed with flange on both ends for easy installation,strain gauge based,high accuracy,5-point test report for both clockwise and counterclockwise direction is provided to guarantee the sensor meets the declared performance.Custom design service is available if you cannot find a suitable model to fit your application well.
5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb
5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb
Dimensions(Unit in "mm")
5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb

5 in-lb torque sensor 5 lb-in torque transducer 10 lb-in 20 in-lb
