Good quality 3 axis force sensor for sales
Good quality 3 axis force sensor for sales

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm
Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm

Large Image :  Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FTE
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Usage: Torque Measurement Sensor Theory: Strain Gauge Torque Sensor
Output: Analog Sensor Torque Range: 0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 12NM 15NM 20NM

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm

Features

  • Aluminum construction,compact size
  • Flange to flange structure,easy to insall
  • Analog output,high accuracy
  • Reaction torque measurement
  • Interchangable with interface torque sensor MRT
  • Customizable

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm

Specifications

Capacity

0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM

10NM 12NM 15NM 20NM
Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Non-linearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Non-repeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.01% R.O./oC
Input resistance 700ohms
Output resistance 700ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Aluminum alloy
Cable Ø3.5*3000mm
Wiring code

Clockwise

Red--E+ Black--E- Green--S+ White--S-



Small size reaction torque sensor FTE

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm

Torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Torque value can be displayed by working with torque meter.Digital indicator FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static and dynamic measurement.FPT also supports RS485/RS232 communication interface and 0-10V/0-5V/4-20mA amplified signal output proportional to the measured torque.

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm

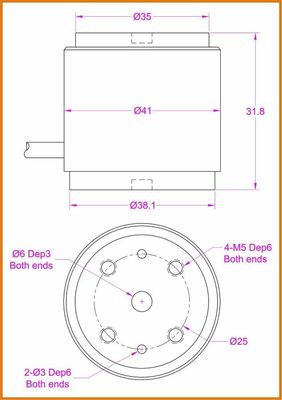

Dimensions(unit in "mm")

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm

Small size torque sensor 1 Nm torque measurement unit 2 Nm torque transducer 5 Nm
