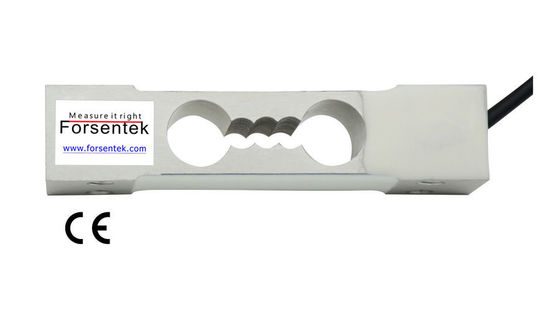

Good quality 3 axis force sensor for sales
Good quality 3 axis force sensor for sales
I'm Online Chat Now

Weight measurement sensor|Weight measurements transducer

China Weight measurement sensor|Weight measurements transducer supplier
Weight measurement sensor|Weight measurements transducer supplier Weight measurement sensor|Weight measurements transducer supplier Weight measurement sensor|Weight measurements transducer supplier Weight measurement sensor|Weight measurements transducer supplier Weight measurement sensor|Weight measurements transducer supplier

Large Image :  Weight measurement sensor|Weight measurements transducer

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FNG

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 9500pcs/month
Contact Now
Detailed Product Description
Usage: Weight Measurement Theory: Strain Gauge Weight Measurement Sensor
Output: Analog Sensor Capacity: 3kg 6kg 10kg 15kg 20kg 30kg 40kg
Type: Single Point Load Cell

Weight measurement sensor|Weight measurements transducer

weight measurement transducer
Features

  • Aluminum construction,small size
  • Strain gauge technology,high accuracy
  • Temperature compensated,stable performance
  • Single point structure,easy to install
  • Suitable for platform sizes up to 250*350(mm) platform
  • Widely used for price computing scales,counting scales,bench scales.etc.

Dimensions
weight measurement sensor

Specifications

Capacity

3kg / 30N / 6.6 lb
6kg / 60N / 13.2 lb
10kg / 100N / 22 lb

15kg / 150N / 33 lb
20kg / 200N / 44 lb

30kg / 300N / 66 lb

40kg / 400N / 88 lb

Rated output 2.0±10%mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.02% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.015% R.O.
Creep(30min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 1130±20 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*400mm(Longer cable available)
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-



High Accuracy Single Point Load Cell FNG is a strain gauge based weight transducer which offers 0-6.6 lb / 0-13.2 lb / 0-22 lb / 0-33 lb / 0-44 lb / 0-66 lb / 0-88 lb seven measuring ranges to choose from. Precison Weight Sensor FNG delivers maximum 0.02% non-linearity of the full capacity. 1000 ohms high resistance strain gauges are used to reduce the power consumption, it is designed with 2xM6 threaded holes on each end, one end for mounting the sensor, the other end for loading. Off center Load cell FNG is corner trimmed for platform sizes up to 250x350mm which makes it suitable for off-center load measurement. Load Cell sensor FNG delivers stable performance within the declared working temperature range thanks to its temperature compensation process. You may find Load cell transducer FNG suitable for applications such as beehive weighing scales, force simulators, packaging machines, vending machines, platform scales, feeding machines and so on.

A weight measurement sensor is a transducer that converts mechanical load into electrical signal whose magnitude is proportional to the weight(or load) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/weight can be measured by measuring the output signal from the load cell which is normally within 0-30mV for off-center loadcell FNG. Overloading is the most common cause of loadcell failure, a load sensor is just like a spring in certain aspects, which will be damaged if overstretched or overloaded. A machanical stop(refer to below picture) can be used to protect the sensor from excessive deformation. The deformation gap can be determined by loading the sensor with rated capacity, then adjust the meachnical stop to reach the bottom of the transducer. In most cases, the load cell will be used to measure load at 40-80% of the full capacity, thus the deformation gap can be adjusted using reference load a bit higher than the target load to be measured instead of the rated capacity.

weighing sensor with overload protection

Weight measurement sensor 3kg 6kg 10kg 15kg 20kg 30kg 40kg Load Cell Transducer

weight measurement sensor

Click here to download datasheet
