Usage: | 3 Directional Force Measurement | Type: | Triaxial Load Cell |
---|---|---|---|
Output: | Analog Sensor | Load Direction: | Fx/Fy/Fz |
Features
Dimensions(unit in "mm")
Specifications
Rated Capacity |
X/Y-50kg 60kg 100kg 150kg 200kg 300kg Z-50kg 60kg 100kg 150kg 200kg 300kg 500kg |
Sensitivity | 1.5mV/V |
Excitation | 3-12V |
Zero balance | ±0.1mV/V |
Non-linearity | ±0.5% R.O. |
Hysteresis | ±0.5% R.O. |
Non-repeatability | ±0.2% R.O. |
Creep(10min) | ±0.1% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Compensated temperature | 0...+40oC |
Operating temperature | -20...+60oC |
Temperature shift on zero | ±0.05% R.O./oC |
Temperature shift on span | ±0.01% R.O./oC |
Input resistance | 780±100 ohms |
Output resistance | 700±100 ohms |
Insulation resistance | >2000M ohms |
Ingress protection | IP62 |
Material of element | Aluminum alloy |
Cable | Ø6.7*3000mm 12-core |
Wiring code |
4-wire connection for each axis |
Front view
Back view
Connector view

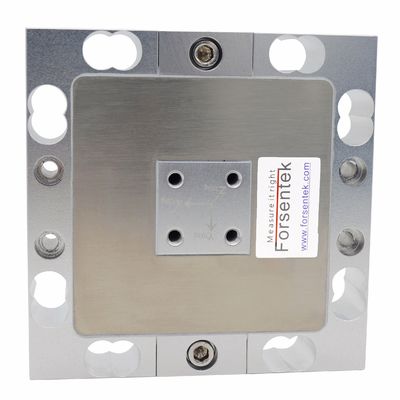

3 axis load cell force sensor XYZ is designed with compact structure to measure X/Y/Z three dimensional force at the same time.Aluminum construction, low profile, light weight, competitive price. Suitable for test benches,force experiments and other force measurements where more than one directional force is involved.
