| Usage: | Tension Force Measurement | Theory: | Strain Gauge Tension Load Cell |
|---|---|---|---|
| Output: | Analog Sensor |

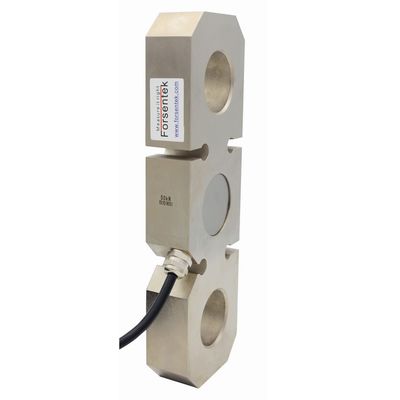

Tension links tension link load cell
Features
Dimensions
Specifications
| Capacity | 20/30/50/70/100/150/200/300/500/700KN |
| Rated output | 2.0mV/V |
| Excitation | 5-15V |
| Zero balance | ±2% R.O. |
| Non-linearity | ±0.03% R.O. |
| Hysteresis | ±0.03% R.O. |
| Non-repeatability | ±0.03% R.O. |
| Creep(30min) | ±0.03% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./10oC |
| Temperature shift span | ±0.03% R.O./10oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Alloy steel |
| Cable | Ø5*3000mm |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Tension link load cell
