Product Details:
Payment & Shipping Terms:
|
| Output: | Analog Sensor | Usage: | Tension Measurement |
|---|---|---|---|
| Theory: | Strain Gauge Tension Transducer |
Dimensions
Specifications
| Capacity | 10N 20N 50N 100N 200N 300N 500N |
| Rated output | 2.0mV/V 0-5V 0-10V 4-20mA |
| Excitation | 5-15V |
| Zero balance | ±2% R.O. |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(30min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 690±100 ohms |
| Output resistance | 650±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø5*2000mm(Longer cable available) |
| Wiring code |
Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |

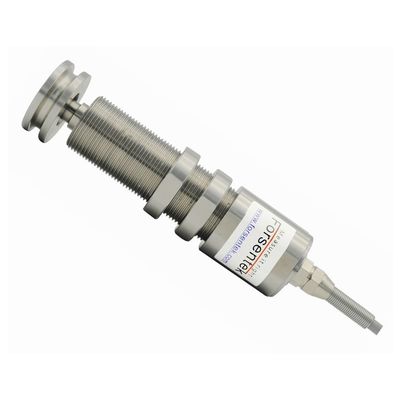

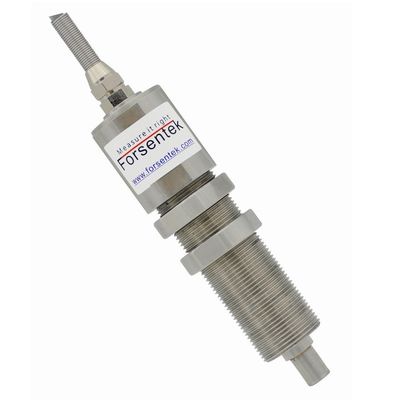

Tension transducer tension measurement sensor
