| Usage: | Rotating Torque Measurement | Type: | Shaft Dynamic Torque Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Torque Measurement Direction: | Clockwise&Counterclockwise |

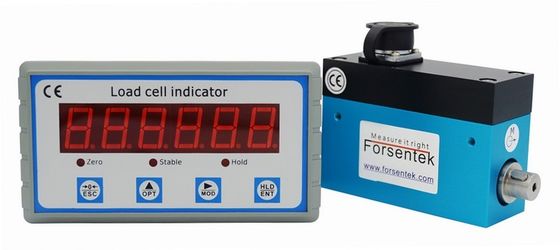

Rotating torque transducer dynamic torque sensor
Features
Dimensions
Specifications
| Capacity | 0.1NM 0.2NM 0.3NM 0.5NM 1NM 2NM 3NM 5NM |
| Rated output | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 385±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø5.5*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Dynamic torque sensor FY02 is a slip ring rotary torque transducer,strain gauge based,inline type structure,shaft to shaft design,can measure rotating torque in both clockwise and counterclockwise direction.
