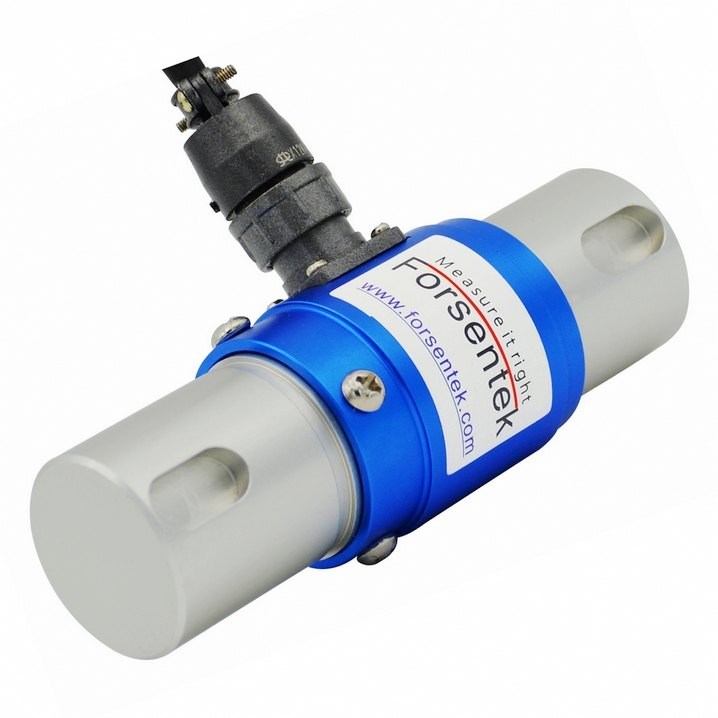

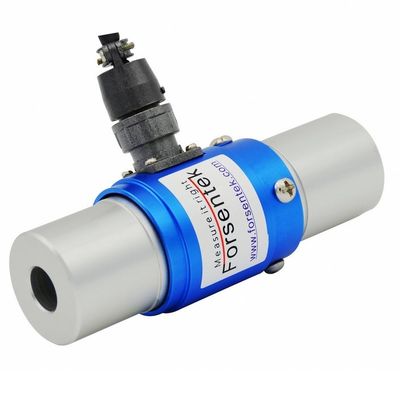

Shaft torque measurement sensor torque transducer shaft

Shaft torque measurement sensor torque transducer shaft
Shaft torque measurement sensor torque transducer shaft Shaft torque measurement sensor torque transducer shaft Shaft torque measurement sensor torque transducer shaft Shaft torque measurement sensor torque transducer shaft Shaft torque measurement sensor torque transducer shaft Shaft torque measurement sensor torque transducer shaft Shaft torque measurement sensor torque transducer shaft Shaft torque measurement sensor torque transducer shaft

Large Image :  Shaft torque measurement sensor torque transducer shaft Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Model Number: FTB
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Usage: Shaft Torque Measurement Theory: Resistance Sensor
Output: Analog Sensor Capacity: 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM
Type: Static Torque Sensor

Shaft torque measurement sensor torque transducer shaft

load cell pdf

shaft to shaft torque sensor

Features

  • Aluminum construction,strain gauge technology
  • Inline type,shaft to shaft structure,easy to insall.
  • Analog output,high accuracy.
  • Reaction torque measurement.

torque transducer shaftshaft torque sensor torque transducer

Dimensions

measuring torque

torque sensor shaft

torque sensing shaft

Specifications

Capacity 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM
Rated output 1.2-2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.05% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.01% R.O./oC
Input resistance 350(700) ohms
Output resistance 350(700) ohms
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element Aluminum alloy
Cable Ø3*3000mm
Wiring code Red--Exc+ Black--Exc- Green--Sig+ White--Sig-

Reaction torque sensor FTB

shaft torque measurement

shaft reaction torque sensor

torque load cell

reaction torque sensor
