Product Details:
Payment & Shipping Terms:
|
| Usage: | Rotating Shaft Torque Measurement | Theory: | Strain Gauge Torque Transducer |
|---|---|---|---|
| Output: | Analog Sensor | Torque Measurement Direction: | Clockwise&Counterclockwise |

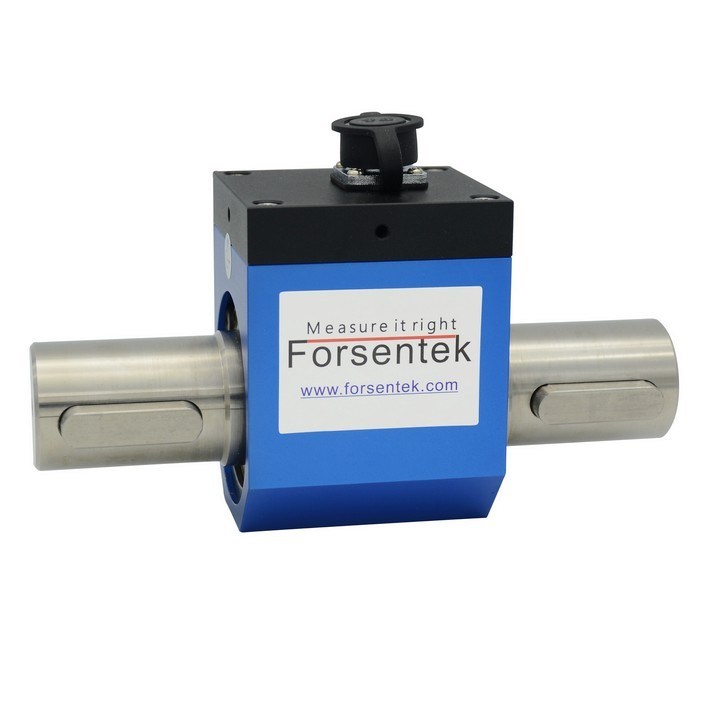

| Type: | Slip-Ring Rotary Torque Transducer |
Features
Dimensions
Specifications
| Capacity | 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM |
| Rated output | 1.5mV/V |
| Excitation | 5-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.15% R.O. |
| Hysteresis | ±0.15% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(30min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.01% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 350(700) ohms |
| Output resistance | 350(700) ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm |
| Wiring code |
Red--Exc+ Green--Exc- Yellown--Sig+ White--Sig- |
