| Usage: | Reaction Torque Measurement | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Torque Measurement Direction: | Clockwise&Counterclockwise |
| Capacity: | 0.1NM 0.2NM 0.3NM 0.5NM 1NM 2NM 3NM 5NM | Type: | Reaction Torque Transducer |

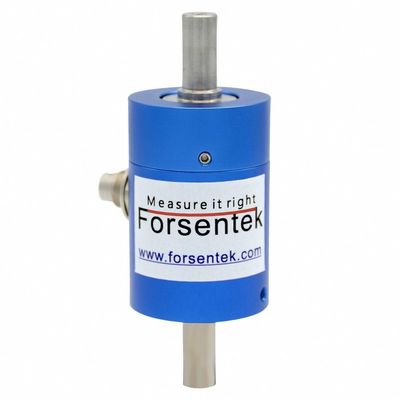

Shaft Style Reaction Torque Transducer 5Nm 3Nm 2Nm 1Nm 0.5Nm 0.2Nm 0.1Nm
Features
Dimensions
Specifications
| Capacity | 0.1NM 0.2NM 0.3NM 0.5NM 1NM 2NM 3NM 5NM |
| Rated output | 1.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP60 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm |
| Wiring code | Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |
Miniature size shaft reaction torque transducer FT05
