| Usage: | Measure Torque | Theory: | Strain Gauge Torque Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Torque Measurement Direction: | Clockwise&Counterclockwise |
Features
Dimensions
Specifications
| Capacity | 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM |
| Rated output | 1.2-2.0mV/V |
| Excitation | 5-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.15% R.O. |
| Hysteresis | ±0.15% R.O. |
| Nonrepeatability | ±0.05 R.O. |
| Creep(30min) | ±0.1 R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.01% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm |
| Wiring code | Red--E+ Green--E- Yellown--S+ White--S- |

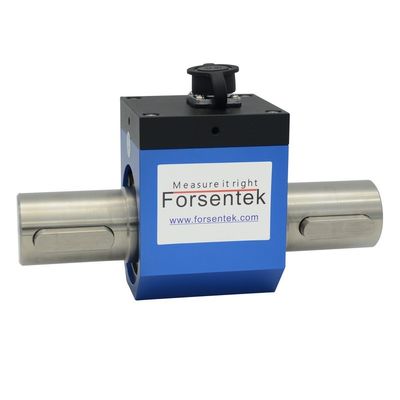

Torque transducer measure rotating torque
