Product Details:
Payment & Shipping Terms:
|
| Usage: | Weighing Load Cell | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Material: | Stainless Steel |
Features
Dimensions
Specifications
| Capacity | 5kg 10kg 20kg 50kg 100kg 200kg 300kg 500kg |
| Rated output | 2.0mV/V |
| Excitation | 5-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.015% R.O. |
| Hysteresis | ±0.015% R.O. |
| Nonrepeatability | ±0.01% R.O. |
| Creep(30min) | ±0.015% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.015% R.O./10oC |
| Temperature shift span | ±0.015% R.O./10oC |
| Input resistance | 390±10 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable | Ø5.3*3000mm |
| Wiring code |
Blue--Exc+ Black--Exc- Green--Sen+ Grey--Sen- White--Sig+ Red--Sig- |

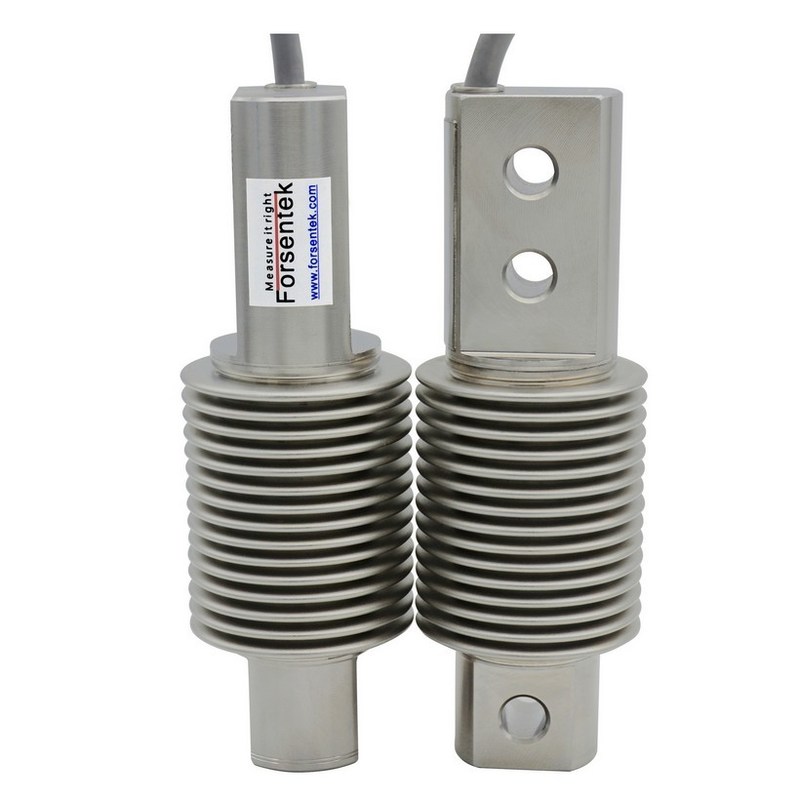

6-wire load cell FSH
