Weight Transducer 3kg 6kg 10kg 20kg 30kg 40kg strain gauge Loadcell Sensor

Weight Transducer 3kg 6kg 10kg 20kg 30kg 40kg strain gauge Loadcell Sensor

Weight Transducer 3kg 6kg 10kg 20kg 30kg 40kg strain gauge Loadcell Sensor
Weight Transducer 3kg 6kg 10kg 20kg 30kg 40kg strain gauge Loadcell Sensor Weight Transducer 3kg 6kg 10kg 20kg 30kg 40kg strain gauge Loadcell Sensor Weight Transducer 3kg 6kg 10kg 20kg 30kg 40kg strain gauge Loadcell Sensor

Large Image :  Weight Transducer 3kg 6kg 10kg 20kg 30kg 40kg strain gauge Loadcell Sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: FNG
Payment & Shipping Terms:
Minimum Order Quantity: 3pcs
Packaging Details: Carton
Delivery Time: 3~25 working days
Payment Terms: T/T,Western Union or Paypal
Supply Ability: 8100pcs/month
Detailed Product Description
Usage: Weight Sensor Type: Single Point Load Transducer
Output: Analog Sensor Capacity: 3kg 6kg 10kg 15kg 20kg 30kg 40kg

Weight Transducer 3kg 6kg 10kg 20kg 30kg 40kg strain gauge Loadcell Sensor

load cell 6kg

Features:

  • Aluminum construction,small size
  • Strain gauge technology,high accuracy
  • Corner trimmed for 250*350(mm) platform
  • Widely used for price computing scales,counting scales,bench scales.etc.

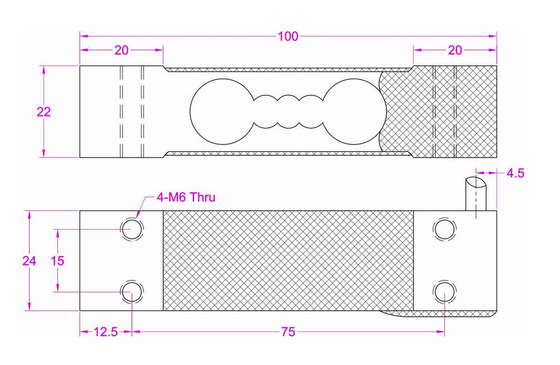

Dimensions

load cell sensor 3kg 6kg 10kg 20kg 30kg 40kg



Specifications

Capacity

3kg / 30N / 6.6 lb
6kg / 60N / 13.2 lb
10kg / 100N / 22 lb

15kg / 150N / 33 lb
20kg / 200N / 44 lb

30kg / 300N / 66 lb

40kg / 400N / 88 lb

Rated output 2.0±10%mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.02% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.015% R.O.
Creep(30min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 1130±20 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*400mm(Longer cable available)
Wiring code

Red--Excitation+    Black--Excitation-

Green--Signal+    White--Signal-

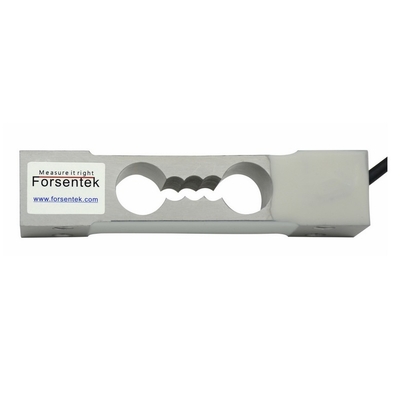

Strain gauge sensor 3kg 6kg 10kg 20kg 30kg 40kg

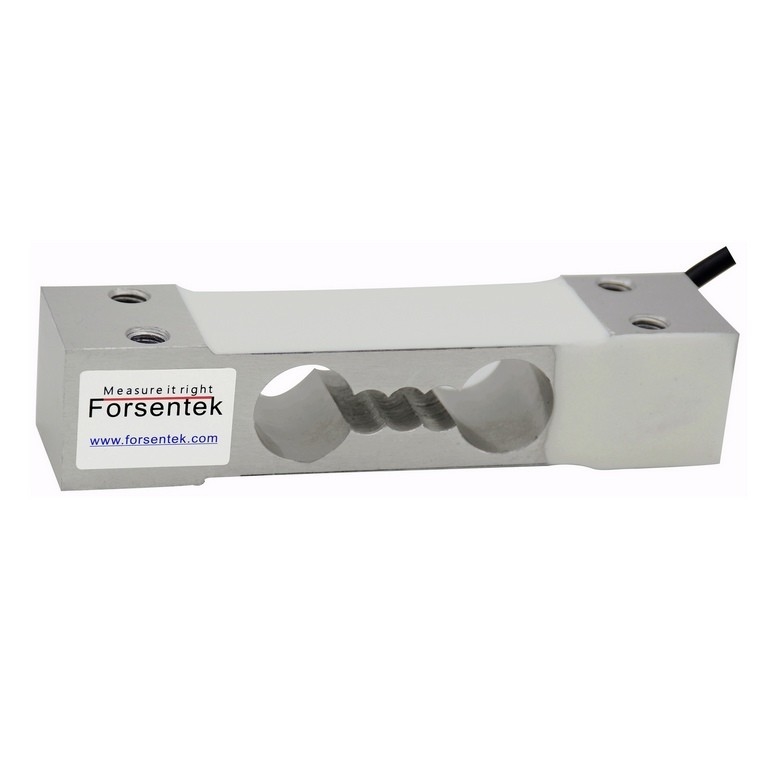

weight sensor 6kg 10kg 20kg 30kg 40kg

Click here to download datasheet
