| Usage: | Weight Transducer | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Capacity: | 3kg 5kg 10kg 20kg |

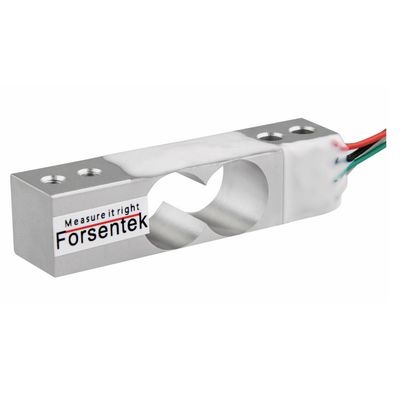

Inexpensive load cell 3kg 5kg 10kg 20kg
Features:
Specifications
| Capacity | 3kg 5kg 10kg 20kg |
| Rated output | 1.0±20%mV/V |
| Excitation | 3-10V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.05% R.O. |
| Hysteresis | ±0.05% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(2min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.2% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 1130±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | 28AWG*180mm |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
