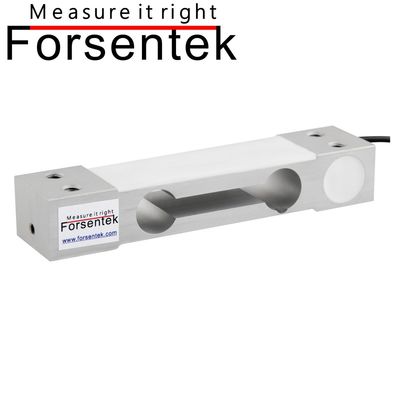

Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer

Name: Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer
Brand: Forsentek
SKU: FH03
Rating: 4.8 (125 reviews)

Large Image : Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Certification:	CE
Model Number:	FH03

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton
Delivery Time:	3~25 working days
Payment Terms:	T/T,Western Union or Paypal
Supply Ability:	8000pcs/month

Contact Now

Detailed Product Description

Usage:

Weight Measurement

Type:

Off Center Weighing Sensor

Output:

Analog

High Light:

load cell sensor

load cell 5kg

load cell 10kg

Weighing Load Cell Sensor 3kg 6kg 10kg 20kg 40kg Weight Transducer

Features:

Aluminum construction,strain gauge based,high accuracy.
Static load measurement.

Dimensions:

single point load cell F48013220095

Specifications

Capacity	3kg / 30N / 6.6 lb 6kg / 60N / 13.2 lb 10kg / 100N / 22 lb 20kg / 200N / 44 lb 40kg / 400N / 88 lb
Rated output	2.0 mV/V
Excitation	3-15V
Zero balance	±0.1mV/V
Nonlinearity	±0.015% R.O.
Hysteresis	±0.015% R.O.
Nonrepeatability	±0.01% R.O.
Creep(30min)	±0.02% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./10^oC
Temperature shift span	±0.02% R.O./10^oC
Input resistance	410±10 ohms
Output resistance	350±5 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP65
Material of element	Aluminum alloy
Cable	Ø4*400mm 4-core
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-
